Dual Channel, Desktop, 10 MHz Frequency Reference, Rubidium with GNSS GPS Disciplining NR2410-ROG

Dual Channel, Desktop, 10 MHz GNSS GPS Locked Low Noise Rubidium Frequency Reference  – NR2410-ROG

NR2410-ROG

For many applications, the phase noise of a Rubidium reference is not acceptable. The NR2410-ROG incorporates a low noise OCXO that is disciplined to the Rubidium reference.  The Rubidium source is in turn disciplined to the GNSS GPS.  The NR2410-ROG brings the best of three timing technologies together- the low phase noise of the OCXO, excellent holdover stability of Rubidium and the long-term stability of GNSS locking.   All channels are continuously monitored .

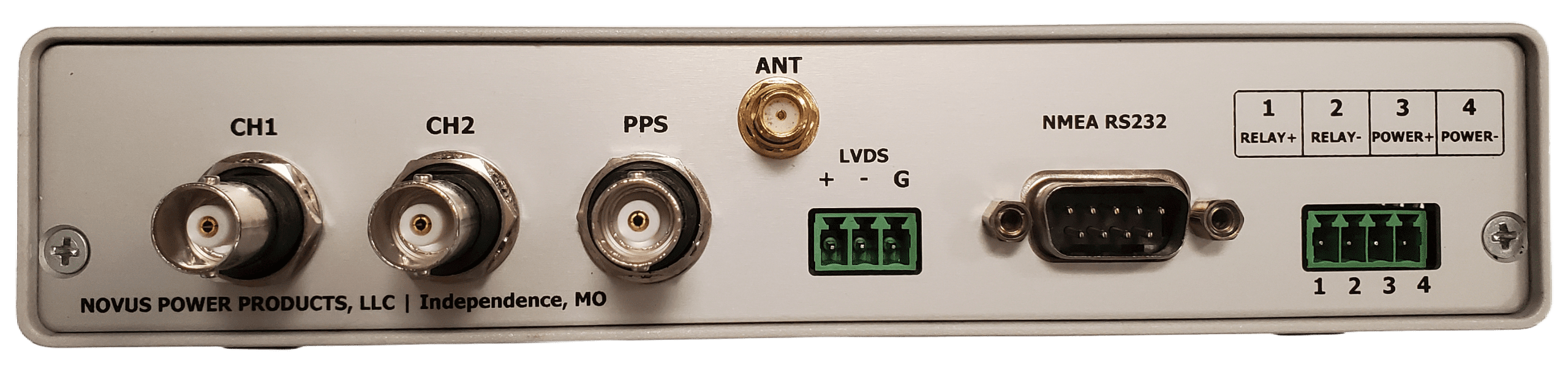

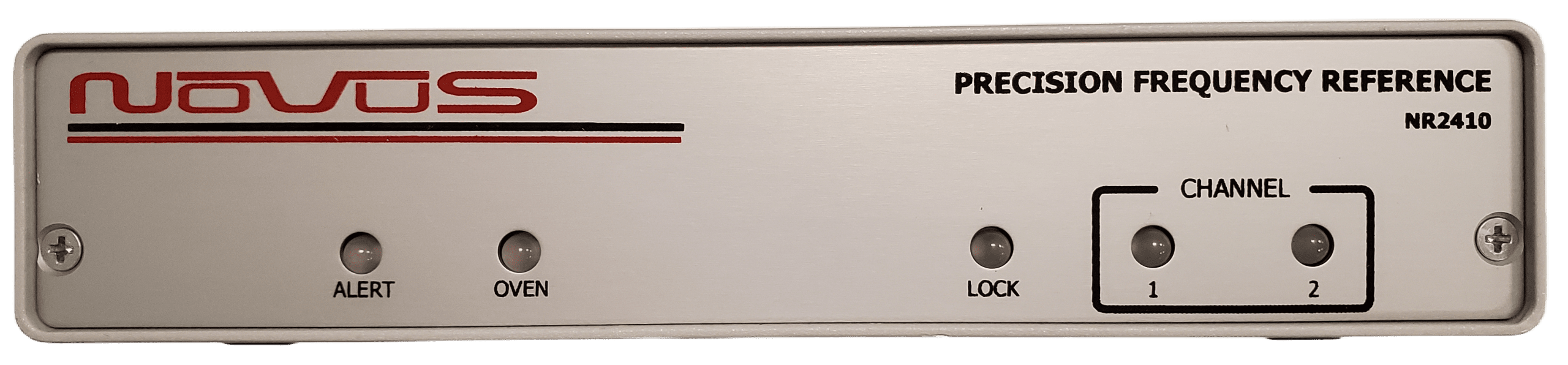

• Two transient and fault protected channels with local indicators on the front and rear panel.
• Exceptional Allan Deviation < 1E-12
• Option-operates from AC or DC power sources (power adapter available.
• aging less than 5E-11/month (unlocked)
• temperature stability <5E-10 0 to 50C (unlocked)
• Warm-up time , 12 min
• High stability PPS option available , < 100 ps -P-P (see curve)
• PPS available as CMOS or LVDS

10Hz     -115
100Hz   -135
1K         -145
10K       -155

Brand : Novus          SKU :NR2410-ROG
