Dual Channel Low Noise Rubidium 10 MHz Frequency Reference with GNSS Locking NR2110D-R/O/G


Dual Channel, GNSS Disciplined 10 MHz Frequency Reference with Rubidium Holdover

Dual Channel Low Noise GNSS Locked Rubidium 10 MHz Frequency Reference


For many applications, the phase noise of a Rubidium reference is not acceptable. The NR2110D-R/O/G incorporates a low noise OCXO that is disciplined to the Rubidium reference. This product also adds a 26 channel GNSS receiver that brings the long-term stability of GNSS. The NR2110D-R/O/G brings the best of three timing technologies together- the low phase noise of the OCXO, excellent holdover stability of Rubidium and the long-term stability of GNSS GPS locking.   All channels are continuously monitored and displayed locally and accessible via RS232 or Ethernet. Additional stability options offer thermal and vibration isolation.

  • Two transient and fault protected channels with local indicators on the front and rear panel.
  • Option-operates from AC or DC power sources..
  • Monitor and set alert limits on each output.
  • Dual time base option assures reference integrity
  • aging less than 5E-11/month (unlocked)
  • temperature stability <5E-10 0 to 50C (unlocked)
  • Warm-up time , 12 min
  • High stability 1PPS option available , < 1 ns -P-P (see curve)
  • Available with BNC or SMA output connectors
  • Networking with SNMP
  • Additional Stability options available- see additional info tab
  • Available with either SMA or BNC output connectors

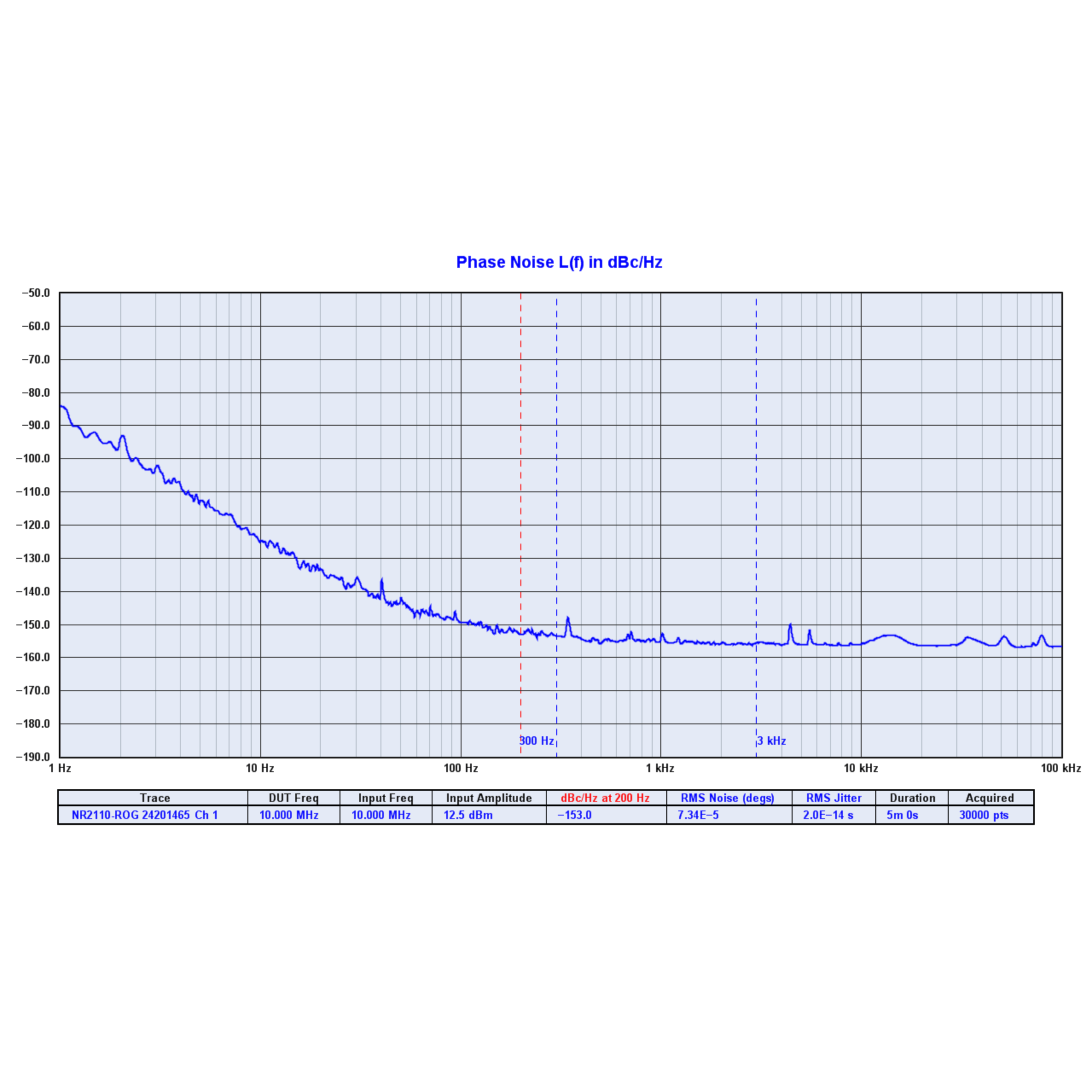

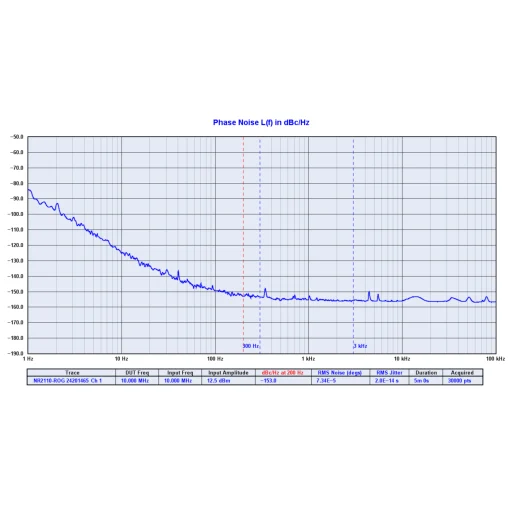

10Hz     -125
100Hz   -140
1K         -145
10K       -150

Brand : Novus          SKU :NR2110D-R/O/G
