Description

Dual Channel, Low Cost Rubidium 10MHz Frequency Reference – NR2110D-R

NR2110D-R

High Stability Rubidium 10MHz Frequency Reference

Low Cost dual channel 10 MHz Rubidium frequency reference.  Channels are continuously monitored and displayed locally and accessible via RS232 or Ethernet.

• Two transient and fault protected channels with local indicators on the front and rear panel.
• Option-operates from AC or DC power sources..
• Monitor and set alert limits on each output.
• aging less than 5E-11/month (unlocked)
• temperature stability <5E-10 0 to 50C (unlocked)
• Warm-up time , 12 min
•  BNC output connectors
• Networking with optional SNMP
• Available with either SMA or BNC output connectors

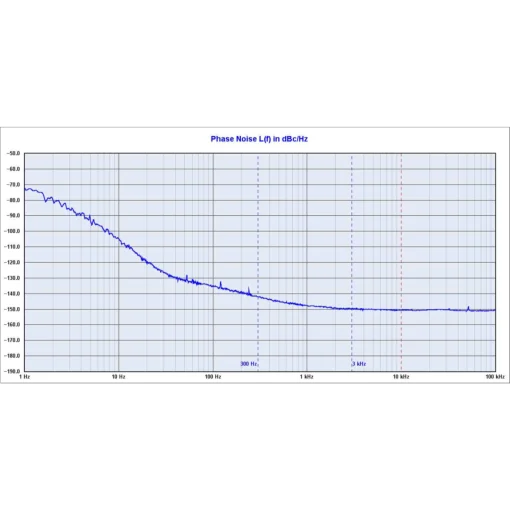

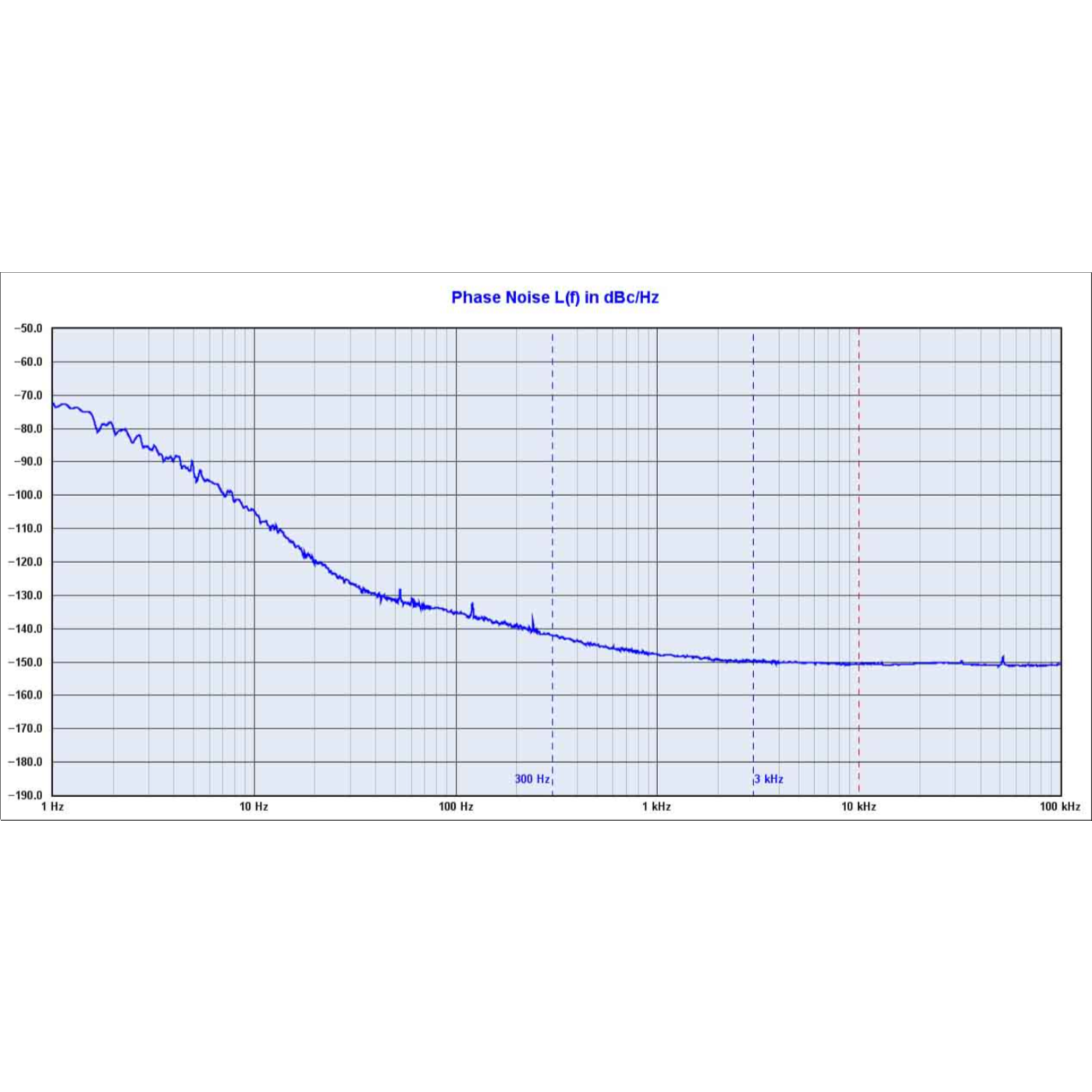

10Hz     -85
100Hz   -115
1K         -135
10K       -140

Brand : Novus          SKU :NR2110D-R
