NR3620-ROG-HS Rubidium GNSS GPS Disciplined Oscillator 10 MHz High-Stability Frequency Reference

NR3620-ROG-HS

GNSS GPS Disciplined Oscillator — 10 MHz High-Stability Frequency Reference

• GNSS-locked 10 MHz reference oscillator with Rubidium holdover

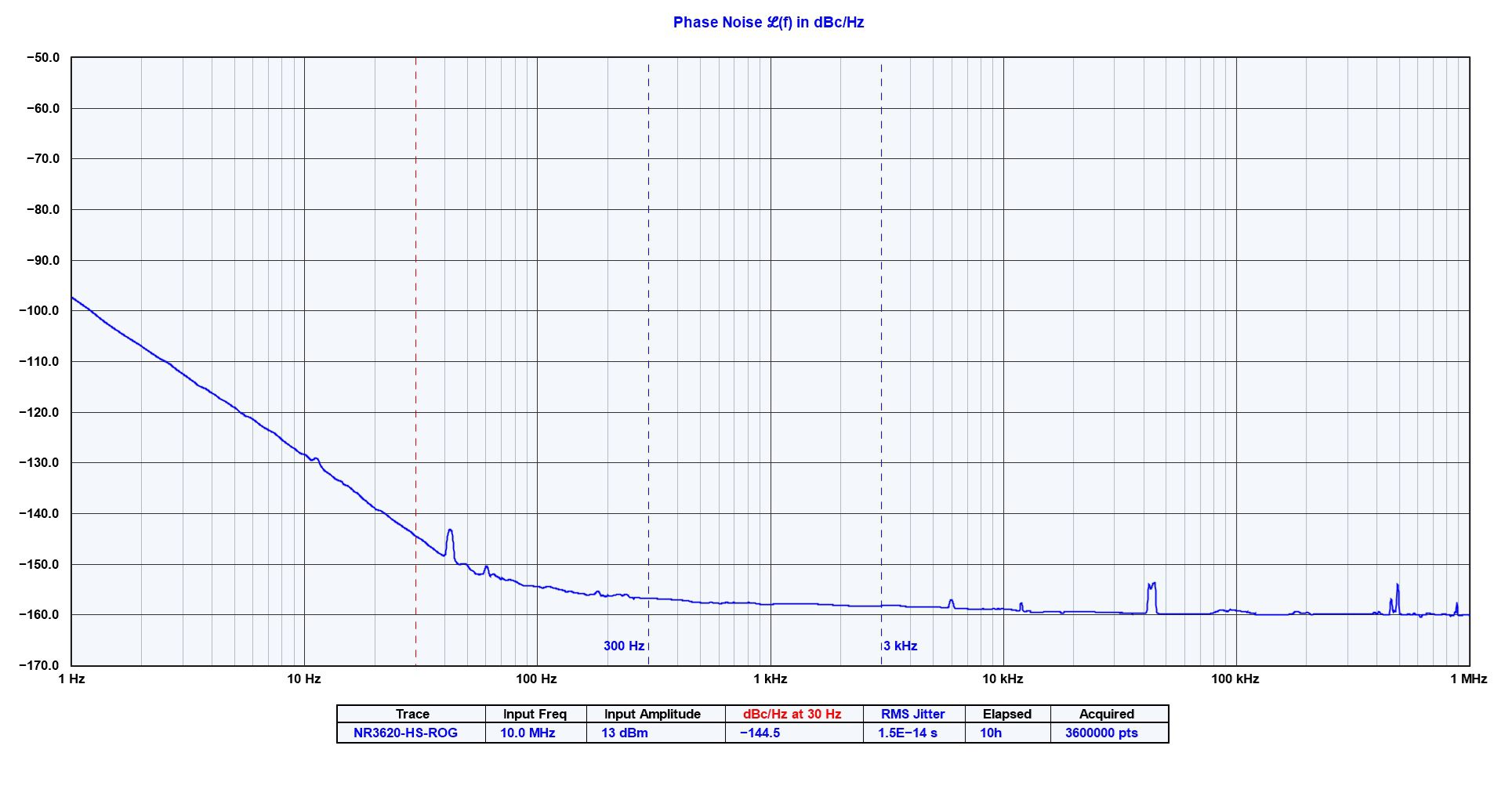

• Ultra-low phase noise OCXO with <5 ppb/day stability
• 1PPS output accuracy <5 ns (1σ), jitter <200 ps
• L1/L2 GPS, BeiDou, Galileo, and GLONASS reception (184-channel)

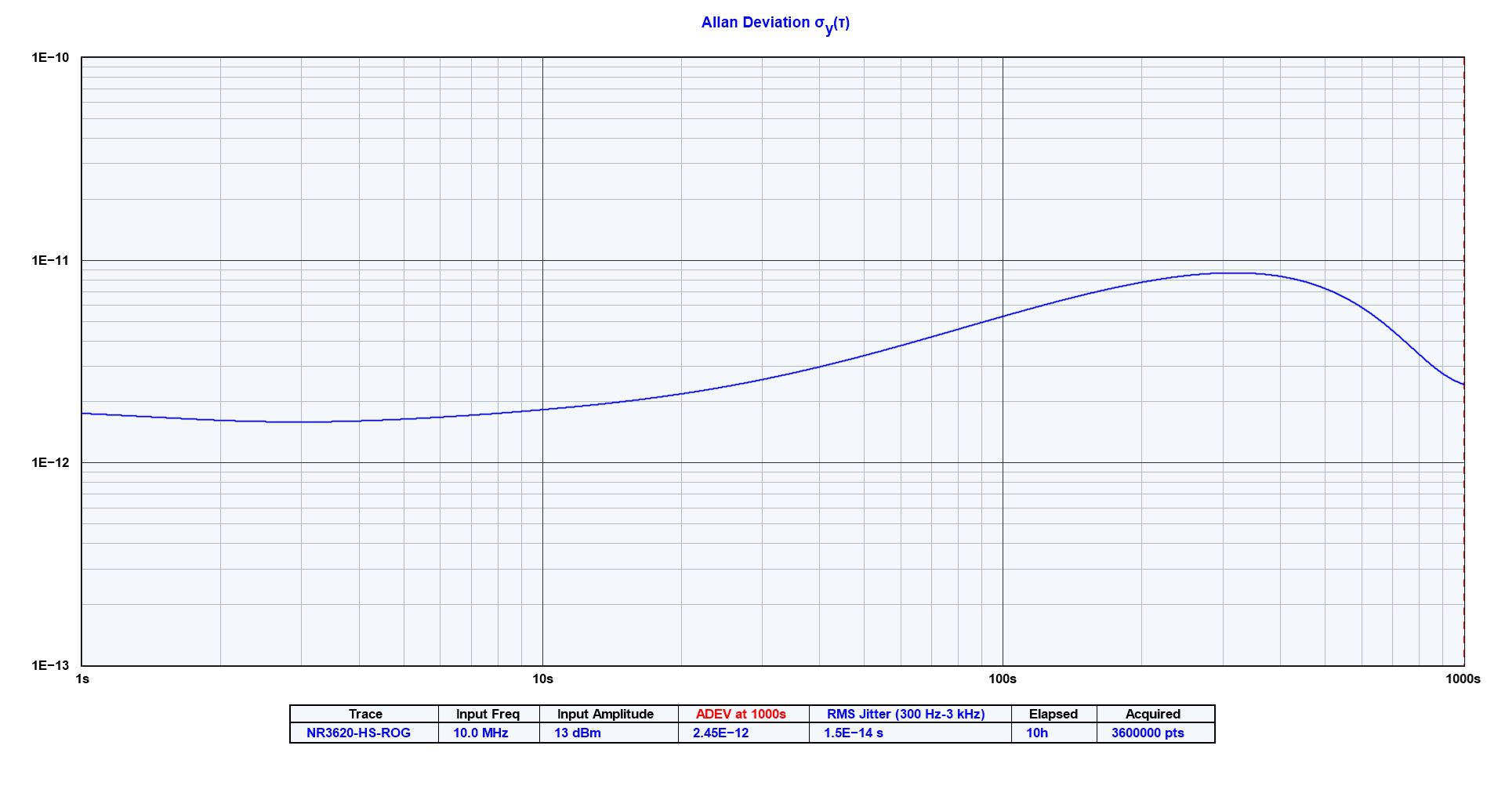

• Continuous Allan Deviation monitoring and RS232 status reporting
• NMEA output and IRIG-B timecode support
• Auto calibration for crystal coefficients, eliminating long-term drift
• GPS lock indication via front panel and lock relay contacts
• Single-channel 10 MHz design with low-noise output <-30 dBc harmonics
• Standard 12 VDC power input with optional AC adapter and extended DC ranges (-60 to +60 VDC)
• All inputs/outputs fault and transient protected; system ground isolated

The NR3620-ROGHS provides a precise 10 MHz GNSS-disciplined frequency reference with Rubidium holdover stability. Its low phase-noise OCXO, Allan Deviation monitoring, IRIG-B timecode output, and full RS232/NMEA reporting make it ideal for laboratories, timing distribution, synchronization, and RF test environments. Designed for reliability, it ensures accuracy even during GNSS outages using auto calibration and Rubidium stability.

FAQ

1. What makes this oscillator high-stability?
   The combination of Rubidium holdover, low phase-noise OCXO, and continuous Allan Deviation monitoring ensures exceptional stability.
2. Does it support both AC and DC power?
   Yes. Standard input is 12 VDC, with an optional AC adapter and extended DC ranges available for flexible integration.
3. Can it output IRIG-B timecode?
   Yes, IRIG-B formats 000, 120, and 124 are supported in addition to the 10 MHz and PPS signals.
4. How is system status monitored?
   Via RS232 reporting, NMEA output, Allan Deviation logs, and visual lock indication from the front panel and relay contacts.

Brand : Novus          SKU :NR3620-HS-R
