GNSS 10 MHz Reference Featuring Three 10 MHz Sine and Three 1PPS plus LVDS NR3606-OG

Description

10 MHz Oscillator Featuring Three 10 MHz Sine and Three Synthesized 1PPS with LVDS

NR3606-OG

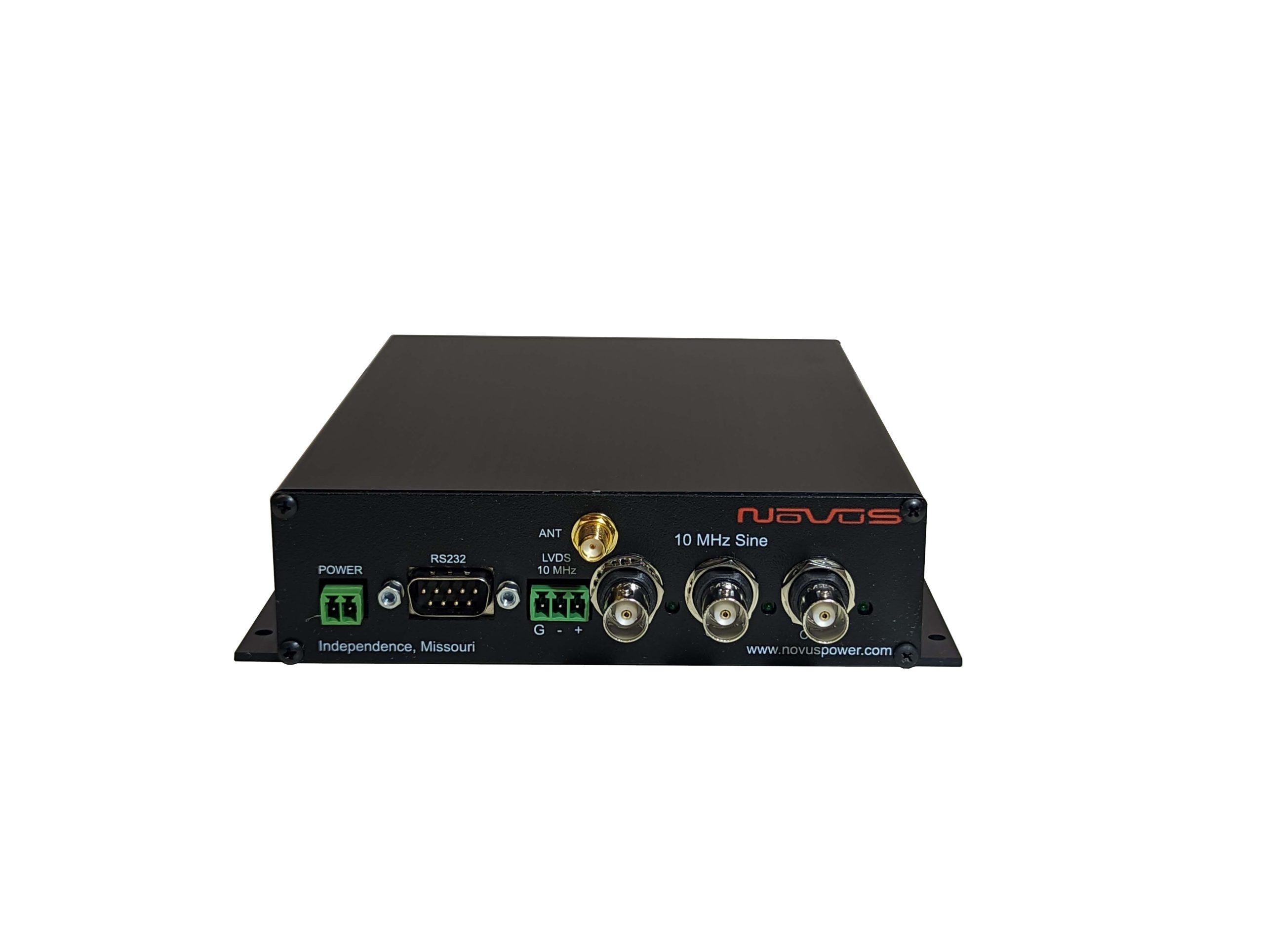

Unique in the industry, the NR3606-OG provides three 10 MHz sine outputs and three 1PPS outputs all GNSS Locked . It also provides a 10 MHz LVDS and 1PPS LVDS output. Ideally suited for applications requiring a stable 10 MHz source and  1PPS.  PPS available at 3.3 or 5 Vdc CMOS levels capable of driving a 50 Ohm load.   A good choice for general lab use.

• Holdover stability of 5 ppb/day, 50ppb/year.

• Operates from DC Power in three ranges +- (10 to 18, 18 to 36, 36 to 65) Vdc or an AC adapter.

• Indicators and signals provide GPS lock and unit self-test status.

• Available in kit form (Includes reference and power adapter).

Need  GNSS Locking more channels-  10 channel NR2310D-OG

See demo video on YOUTUBE (NR3620)

Brand : Novus          SKU :NR3606-OG



Additional information

Data Sheet

https://novuspower.com/wp-content/uploads/2024/03/NR3606-OG-6-channel-reference-C-030124.pdf

Manual

https://novuspower.com/wp-content/uploads/2024/06/NR3606-REV-B-062124.pdf
