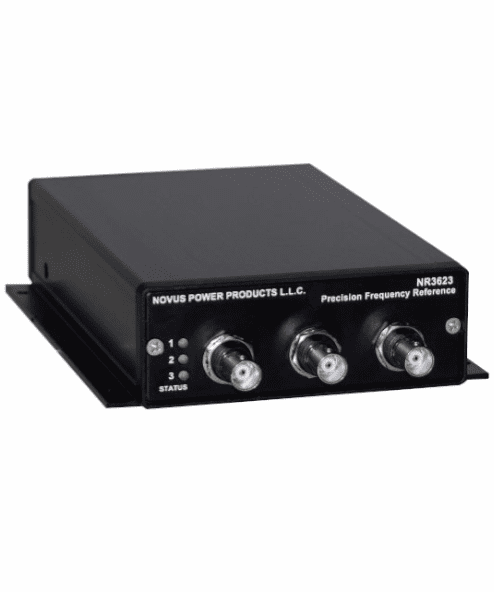

Three Channel 10 MHz Frequency Reference OCXO Based NR3623-O


Three Channel 10 MHz Frequency Reference, OCXO Based

Three Channel Modular 10 MHz Frequency Reference

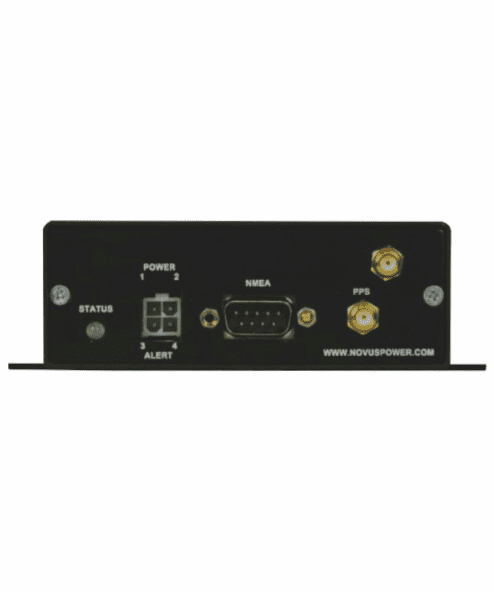

The NR3623 reference uses a low noise SC cut OCXO as the master timing source. The OCXO is biased with a band-gap reference to provide excellent temperature and and aging stability.  LED indicators provide channel fault and self-test status. There is also a floating solid state relay that can be tied to an alarm panel self test status.

  • Low phase noise OCXO
  • Hold-Over stability of 5 ppb/day, 50ppb/year
  • Operates from DC Power in three ranges +- (10 to 18, 18 to 36, 36 to 65) VDC or an AC Adapter
  • Indicators and signals provide fault self-test status

Wide input power range (-60 to +60 VDC)

Brand : Novus          SKU :NR3623-O



Additional information

Data Sheet
