Five Channel 10 MHz OCXO Reference Locked to a PTP time server NR8002

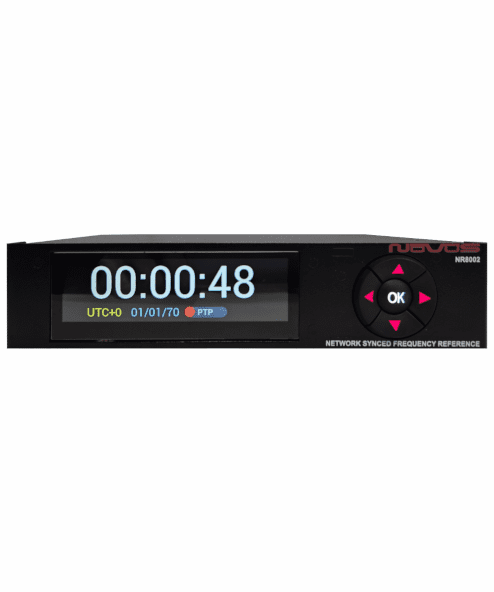

Five-Channel PTP-Locked, 10 MHz OCXO Reference (NR8002)

Reference uses your PTP time server to discipline an OCXO. Eliiminates the need for a separate antenna or long coaxial runs to another reference. PTP/NTP client network-based precision frequency reference. Local network synchronization eliminates coax cabling complexity.User selectable 5 channel timing outputs with options for 10MHz, PPS, or IRIG signals. See the NS8001 as a PTP source.

• PTP-NTP client
• +-50 ns accuracy
• DC powered 12 VDC (power adapter available)
• Compatible with Novus NS8002 time server
• PPS accuracy 5 ns @ 1 sigma
• Supports Unicast, Multicastm or Broadcast

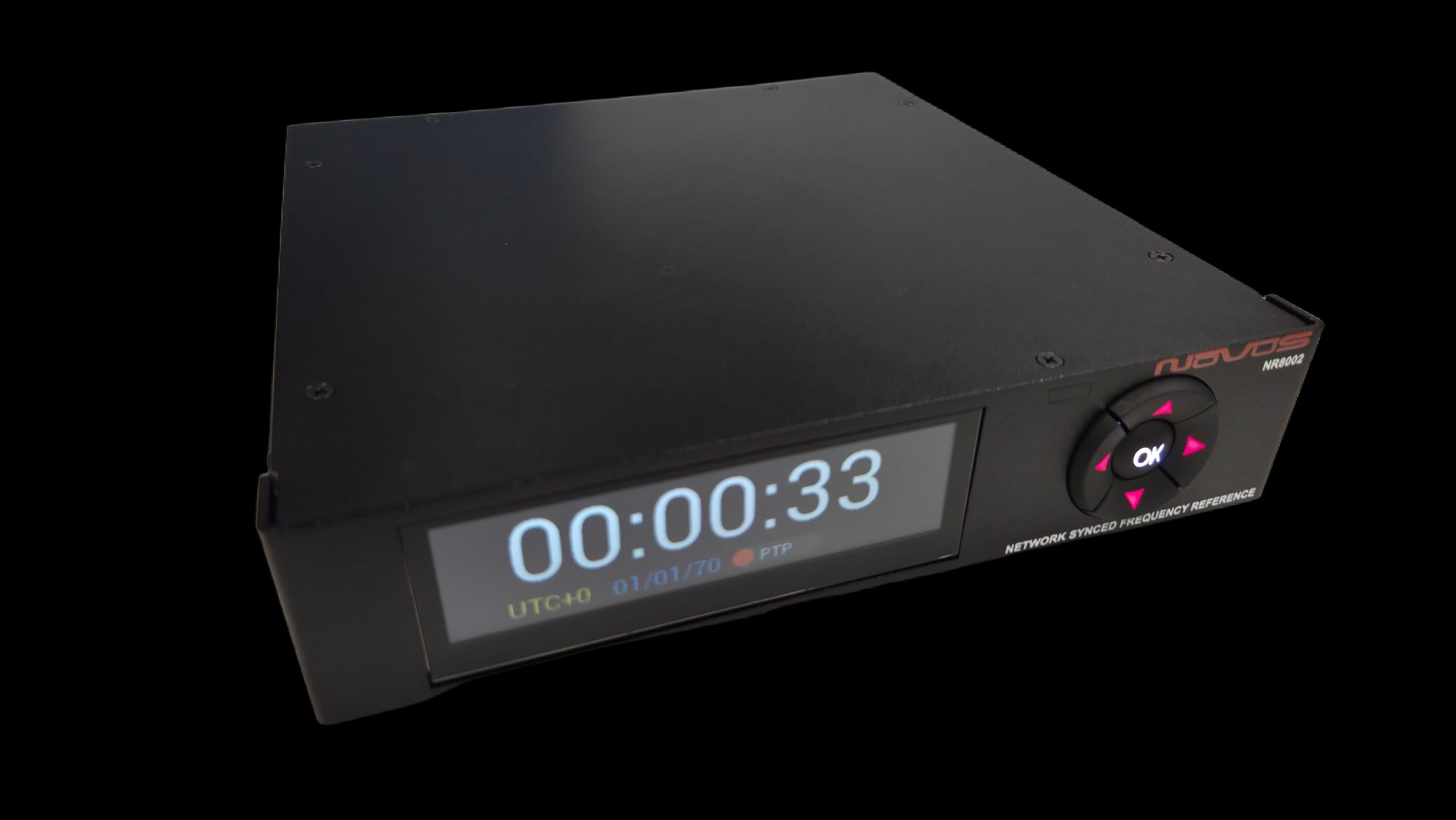

• Benchtop or rackmount with available kit
• 5 channels used programmable  to be 10 MHz, PPS or IRIG-B
• Auto-calibration preserves GNSS-derived coefficients for OCXO holdover stability
• OCXO holdover stability: 5 ppb/day, 50 ppb/year; locked accuracy <1E-11
• Low phase noise: −145 dBc/Hz @ 1 kHz offset

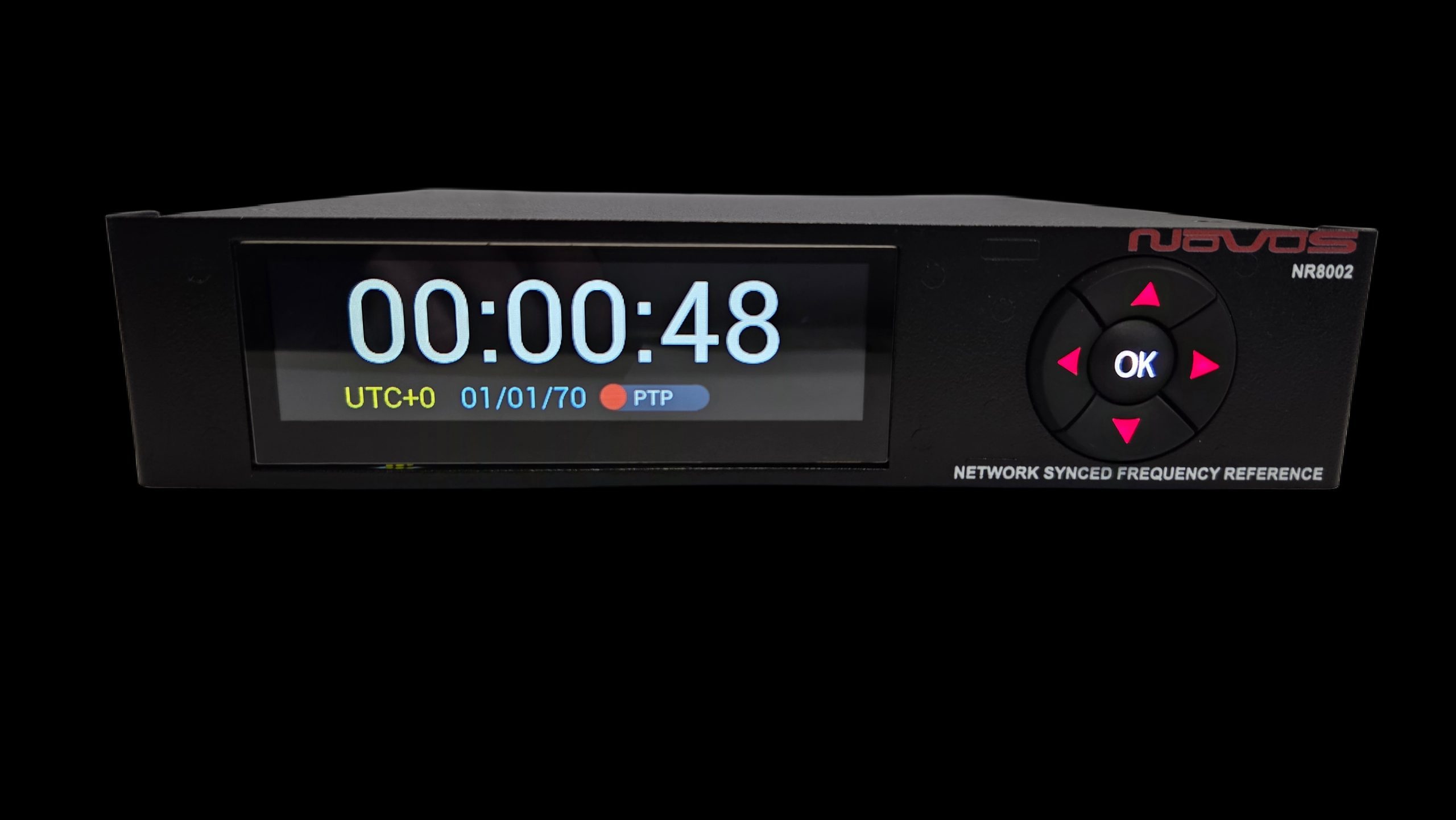

• Front-panel LCD with status LEDs for channel, antenna, oven, and system alerts
• Ethernet connectivity with NTP; supports SNMP and NMEA network monitoring
• Outputs are transient and fault protected; low-jitter PPS with PL-option
• Supports GPS, GLONASS, SBAS, and QZSS constellations for faster lock and reliability

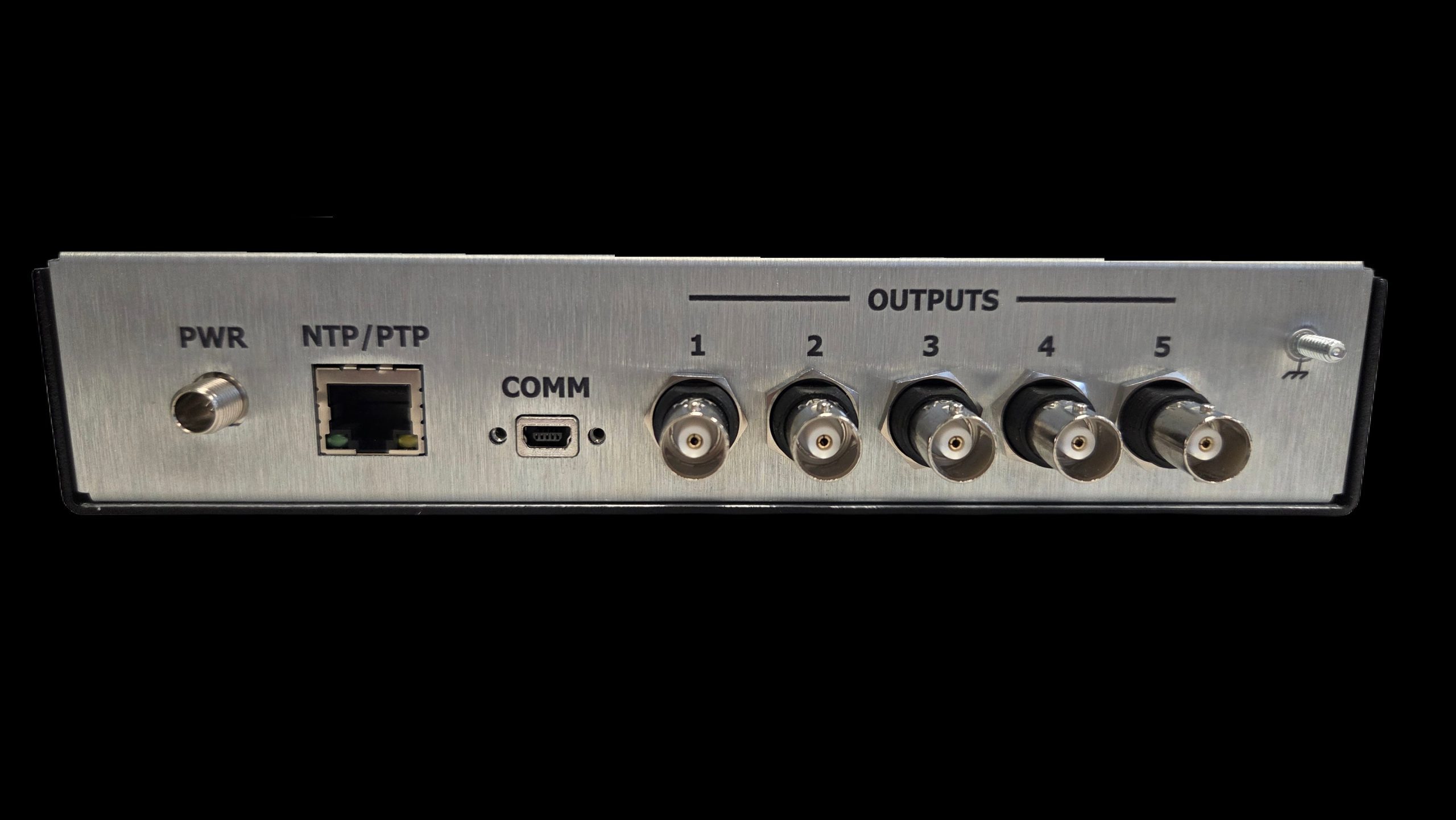

• AC/DC power capability; rackmount chassis; BNC output connectors

FAQ

1. What happens if GNSS lock is lost?
   Auto-calibration applies stored compensation coefficients, maintaining OCXO stability (5 ppb/day typical) until lock is restored.
2. Which satellite constellations are supported?
   The system tracks GPS, GLONASS, SBAS, and QZSS to minimize lock time and enhance reliability.
