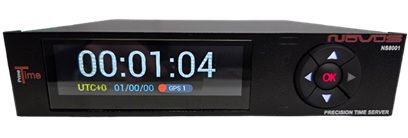

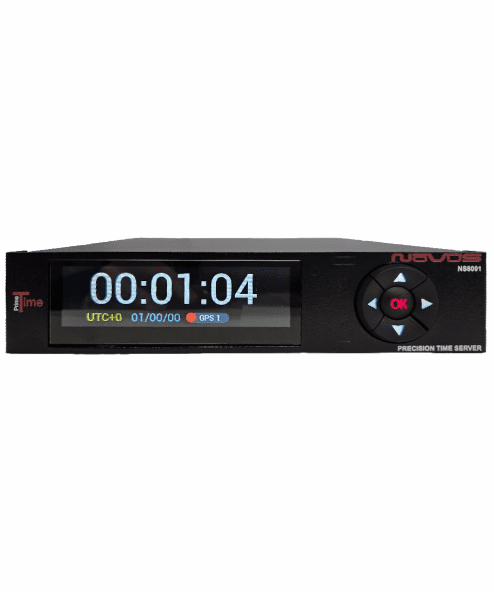

NS8001-PTP Stratum 1 Time Server & 3-Channel Frequency Reference

Dual-channel GNSS-locked Stratum 1 PTP/SyncE time server and frequency reference with 3 user selectable outputs for 10 MHz, PPS, and IRIG. Featuring a dual-time-base design for resilient precision synchronization.

Protocols
NTP, PTP, SyncE
GNSS
GNSS
Oscillator
OCXO
Output Signals
10 MHz, NMEA, PPS
Call (816) 836-7446

Key Features & Specifications

  • Dual-channel GNSS-locked Stratum 1 PTP/SyncE time server and frequency reference with 3 user selectable outputs for 10 MHz, PPS, and IRIG. Featuring a dual-time-base design for resilient precision synchronization.

NR8001-PTP

PTP/NTP/SyncE Low Cost Time Server with Dual-Channel GNSS-Locked Frequency Reference

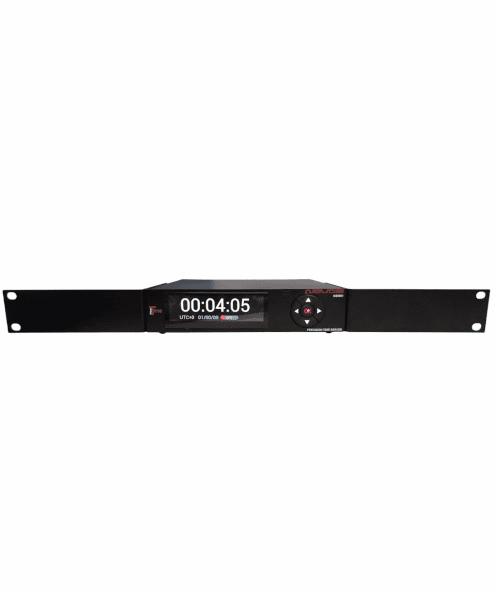

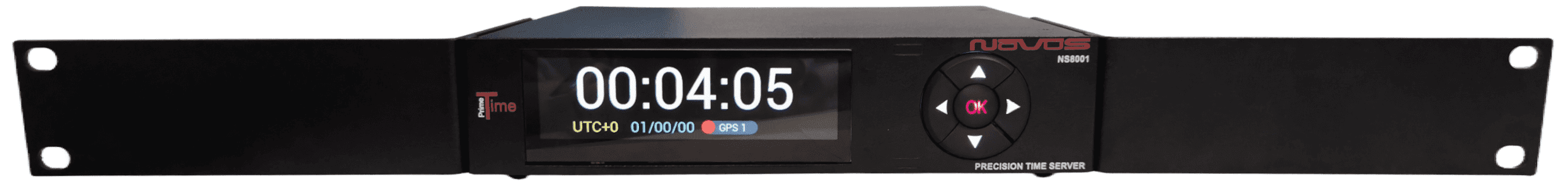

A low cost high performance timing reference in a compact chassis that can be shelf or rack mounted (rack mount kit available). The three output ports can be user selected for 10 MHz, PPS, and IRIG. Timing that is accurate in the tens of nanoseconds. The PPS leading edge can be locked to the 10 MHz signal in 5 ns steps.

  • PTP/NTP/SyncE
  • Stratum 1
  • +-25 ns accuracy
  • 100,000 NTP transcations/second
  • PPS accuracy 5 ns 1 sigma
  • Benchtop or rackmount with kit
  • Large touchscreen display
  • 3 channels are user programmable to output 10 MHz, PPS or IRIG
  • Dual independent GNSS receivers with PPS and 10 MHz OCXO frequency reference
  • Auto-calibration preserves GNSS-derived coefficients for OCXO holdover stability
  • OCXO holdover stability: 5 ppb/day, 50 ppb/year; locked accuracy <2E-11
  • Low phase noise: −145 dBc/Hz @ 1 kHz offset
  • Front-panel LCD with status LEDs for channel, antenna, oven, and system alerts
  • Ethernet connectivity with NTP/PTP
  • Outputs are transient and fault protected; low-jitter PPS with PL-option
  • Supports GPS, GLONASS, SBAS, and QZSS constellations for faster lock and reliability
  • AC/DC power capability; rackmount chassis;

The Novus NR8001 delivers precise time and frequency synchronization for laboratories, telecom systems, power utilities, and secure networks.  Front-panel status indicators, this NTP time server ensures continuous operation and simplified system diagnostics for demanding applications.

FAQ

  1. What happens if GNSS lock is lost?
    Auto-calibration applies stored compensation coefficients, maintaining OCXO stability (5 ppb/day typical) until lock is restored.
  2. Which satellite constellations are supported?
    The system tracks GPS, GLONASS, SBAS, and QZSS to minimize lock time and enhance reliability.
  3. How does the dual-time base option work?
    It adds a second GNSS receiver and gapless counter that continually verifies the 10 MHz reference and warns of tolerance drift.
  4. What connector options are available?
    Choose between BNC or SMA outputs; a kit with an active GNSS antenna is also available.

Datasheets & Manuals

NS8001-PTP-SyncE-Datasheet-260612.pdf
