NS8004-NTP

Small form factor with PPS, 10MHz, IRIG, LVDS, LVTTL, Have Quick, STANAG and NMEA.

Three levels of user security with password protection.

All signals, all functionality included. This is NOT a “Starting At” price. This unit ships complete.

Your price is only

$1375

with quantity discounts available.

A low cost high performance time server and timing reference in a compact chassis (90mmX120mmX27mm) that can be shelf or rack mounted (rack mount kit available). The 2 analog and 2 digital outputs can be independently user-selectable for IRIG, 10 MHz sine, PPS, square wave (10Hz – 50MHz), STANAG, and Have Quick. LVDS and LVTTL outputs. NMEA data provided over serial connection. PPS leading edge can be locked to the 10 MHz in 5 ns steps.

• NTP
• Stratum 1
• +-150 ns accuracy
• 100,000 transactions/second
• Compatible with Novus Network Timing
• PPS accuracy 5 ns 1 sigma

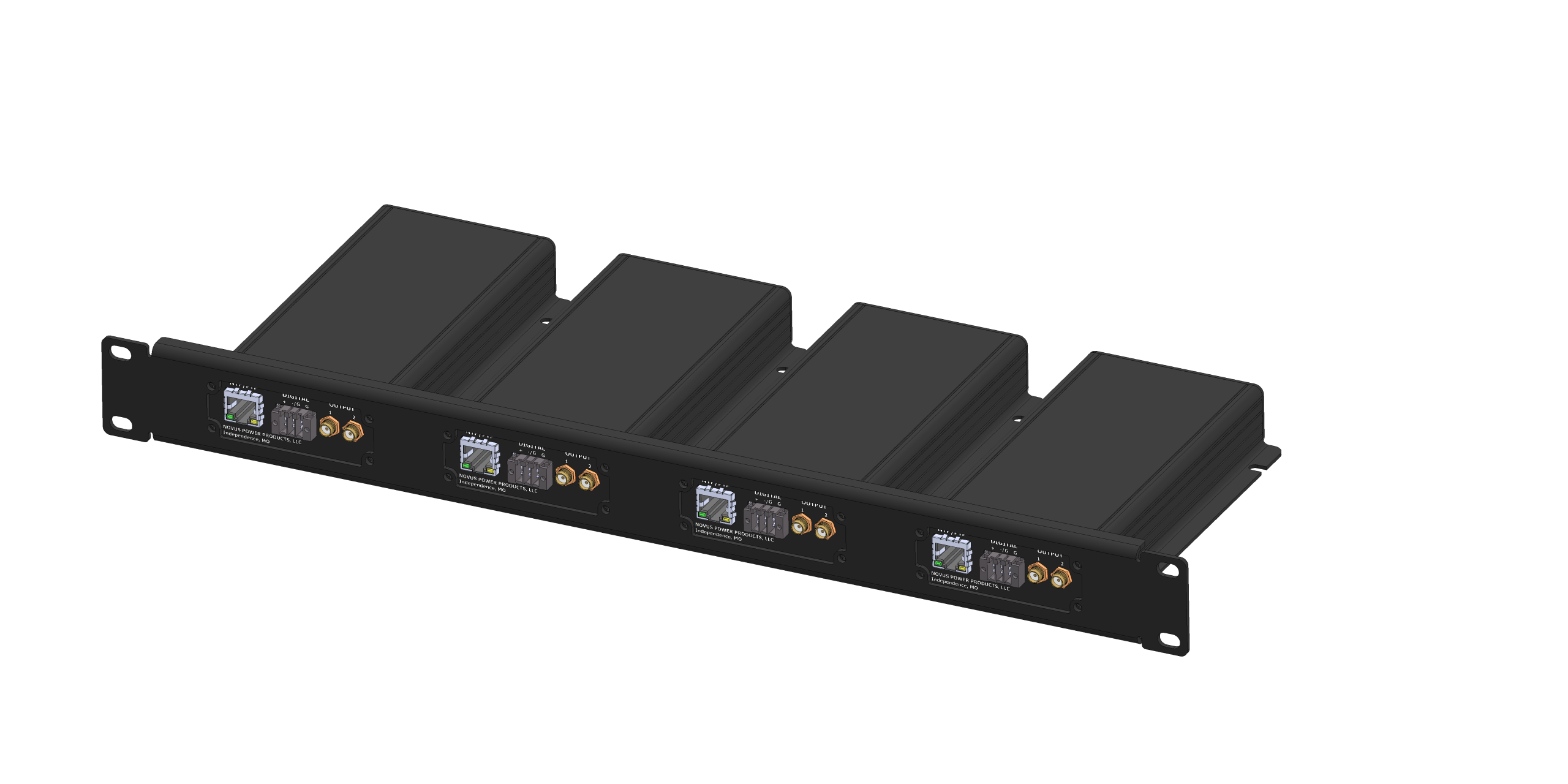

• Benchtop or rackmount with kit
• 2 analog channels: 10MHz (Low Phase Noise), PPS, 10Hz-50MHz Square Wave, IRIG AM, Have Quick
• 2 digital channels: PPS, IRIG-B DCLS, 10Hz – 50MHz Square Wave, LVTTL, LVDS
• NMEA
• Auto-calibration preserves GNSS-derived coefficients for OCXO holdover stability
• OCXO holdover stability: 5 ppb/day, 50 ppb/year; locked accuracy <5E-11
• Low phase noise: −145 dBc/Hz @ 1 kHz offset
• Ethernet connectivity with NTP
• Outputs are transient and fault protected; low-jitter PPS with PL-option
• Supports GPS, GLONASS, SBAS, and QZSS constellations for faster lock and reliability
• AC/DC power capability

The NOVUS NS8004 delivers precise time and frequency synchronization for laboratories, telecom systems, power utilities, and secure networks.  Front-panel status indicators, this NTP time server ensures continuous operation and simplified system diagnostics for demanding applications.

FAQ

1. What happens if GNSS lock is lost?
   Auto-calibration applies stored compensation coefficients, maintaining OCXO stability (5 ppb/day typical) until lock is restored.
2. Which satellite constellations are supported?
   The system tracks GPS, GLONASS, SBAS, and QZSS to minimize lock time and enhance reliability.
3. What connector options are available?
   X2 SMA and X2 Digital
