NS8004 PTP/SyncE Time Server and Timing Reference with PPS, 10MHz, IRIG, LVDS, LVTTL, Have Quick, and STANAG in Small Form Factor

NR8004-PTP/SyncE

Small Form Factor, Low Cost Time Server with Dual-Channel GNSS-Locked 10 MHz OCXO Reference

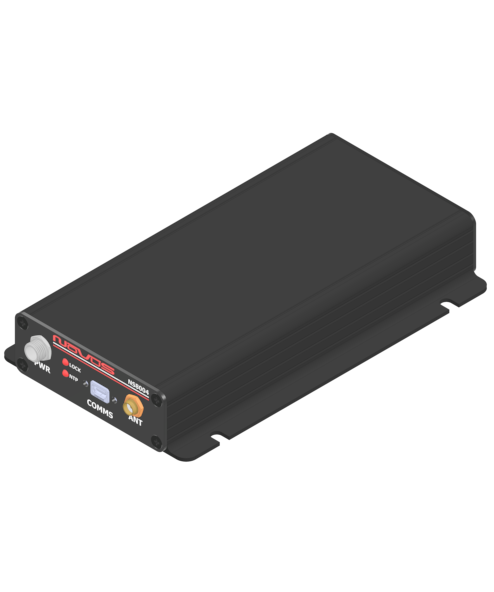

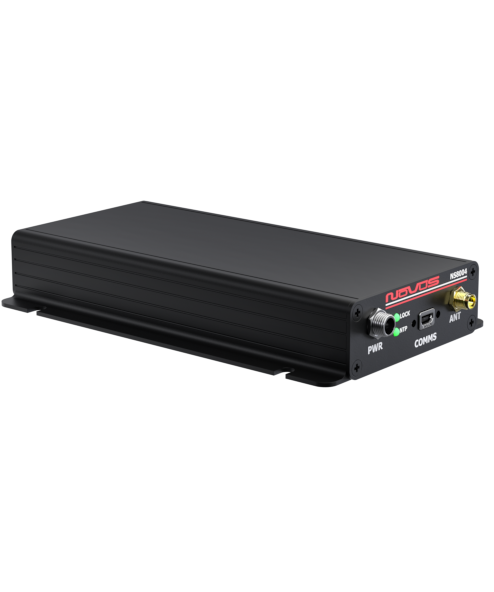

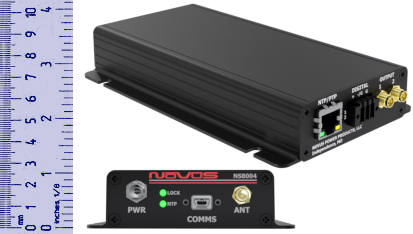

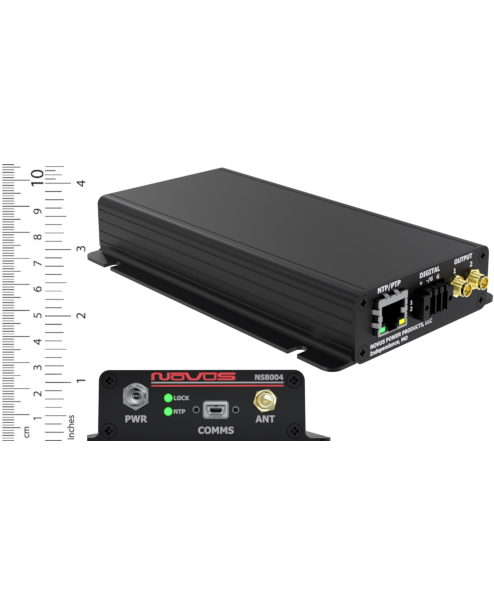

A low cost high performance timing reference in a compact chassis (90mmX120mmX27mm) that can be shelf or rack mounted (rack mount kit available). The 2 analog and 2 digital outputs can be independently user-selectable for IRIG, 10 MHz sine, PPS, or square wave (10Hz – 50MHz). Timing that is accurate in the tens of ns. PPS leading edge can be locked to the 10 MHz in 5 ns steps.

• PTP/Sync-E
• Stratum 1
• +-25 ns accuracy
• 100,000 transactions/second
• Compatible with Novus Network Timing
• PPS accuracy 5 ns 1 sigma
• Benchtop or rackmount with kit
• 2 analog channels: 10MHz (Low Phase Noise), PPS, 10Hz-50MHz Square Wave, IRIG AM, Have Quick

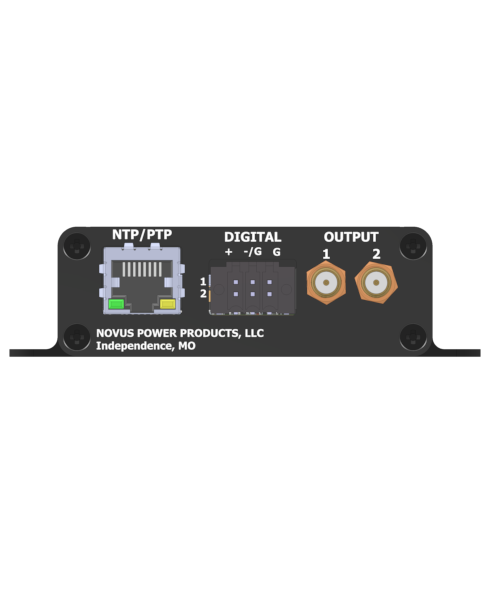

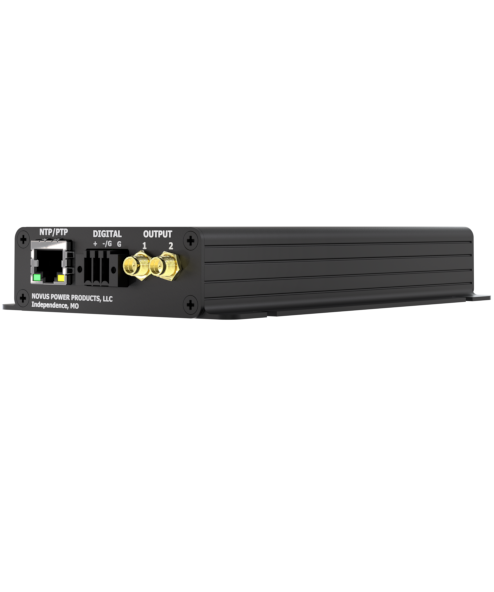

• 2 digital channels: PPS, IRIG-B DCLS, 10Hz – 50MHz Square Wave, LVTTL, LVDS
• Dual independent GNSS receivers with PPS and 10 MHz OCXO frequency reference
• Auto-calibration preserves GNSS-derived coefficients for OCXO holdover stability
• OCXO holdover stability: 5 ppb/day, 50 ppb/year; locked accuracy <1E-11
• Low phase noise: −145 dBc/Hz @ 1 kHz offset

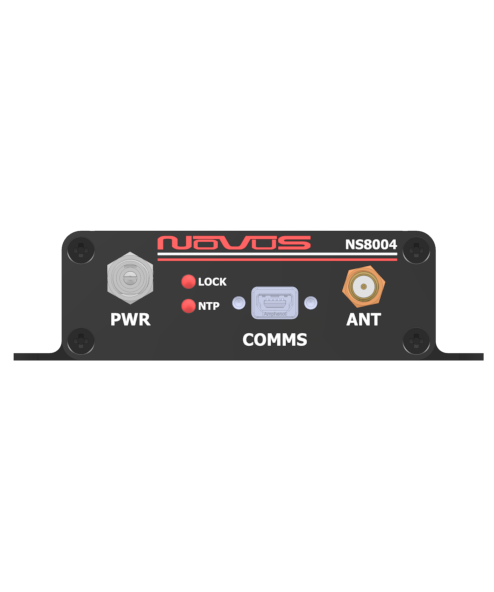

• Front-panel LCD with status LEDs for channel, antenna, oven, and system alerts
• Ethernet connectivity with NTP/PTP
• Outputs are transient and fault protected; low-jitter PPS with PL-option
• Supports GPS, GLONASS, SBAS, and QZSS constellations for faster lock and reliability
• AC/DC power capability; rackmount chassis;

The NOVUS NS8004 delivers precise time and frequency synchronization for laboratories, telecom systems, power utilities, and secure networks.  Front-panel status indicators, this NTP time server ensures continuous operation and simplified system diagnostics for demanding applications.

FAQ

1. What happens if GNSS lock is lost?
   Auto-calibration applies stored compensation coefficients, maintaining OCXO stability (5 ppb/day typical) until lock is restored.
2. Which satellite constellations are supported?
   The system tracks GPS, GLONASS, SBAS, and QZSS to minimize lock time and enhance reliability.
3. How does the dual-time base option work?
   It adds a second GNSS receiver and gapless counter that continually verifies the 10 MHz reference and warns of tolerance drift.
4. What connector options are available?
   Choose between BNC or SMA outputs; a kit with an active GNSS antenna is also available.
