100 MHz GNSS GPS Disciplined Oscillator in Compact Chassis NR7000-OG-100


picoPOD Single 100 MHz/50 MHz Channel GNSS Locked Frequency Reference in a Compact Chassis


100/50 MHz GNSS Disciplined Reference for System Timing

GNSS GPS locked frequency reference featuring a high stability low phase noise OCXO.  1PPS  and NMEA source and reports equipment status locally via RS232 port. Provides a continuous calculation of Allan Deviation. Operates from a single 5 Vdc  power source and is easily integrated.

  • GPS, BeiDou, Galileo, and GLONASS reception.
  • 0.5 Vrms 10 MHz output with harmonics well below -30dBc
  • All inputs and outputs are fault and transient protected

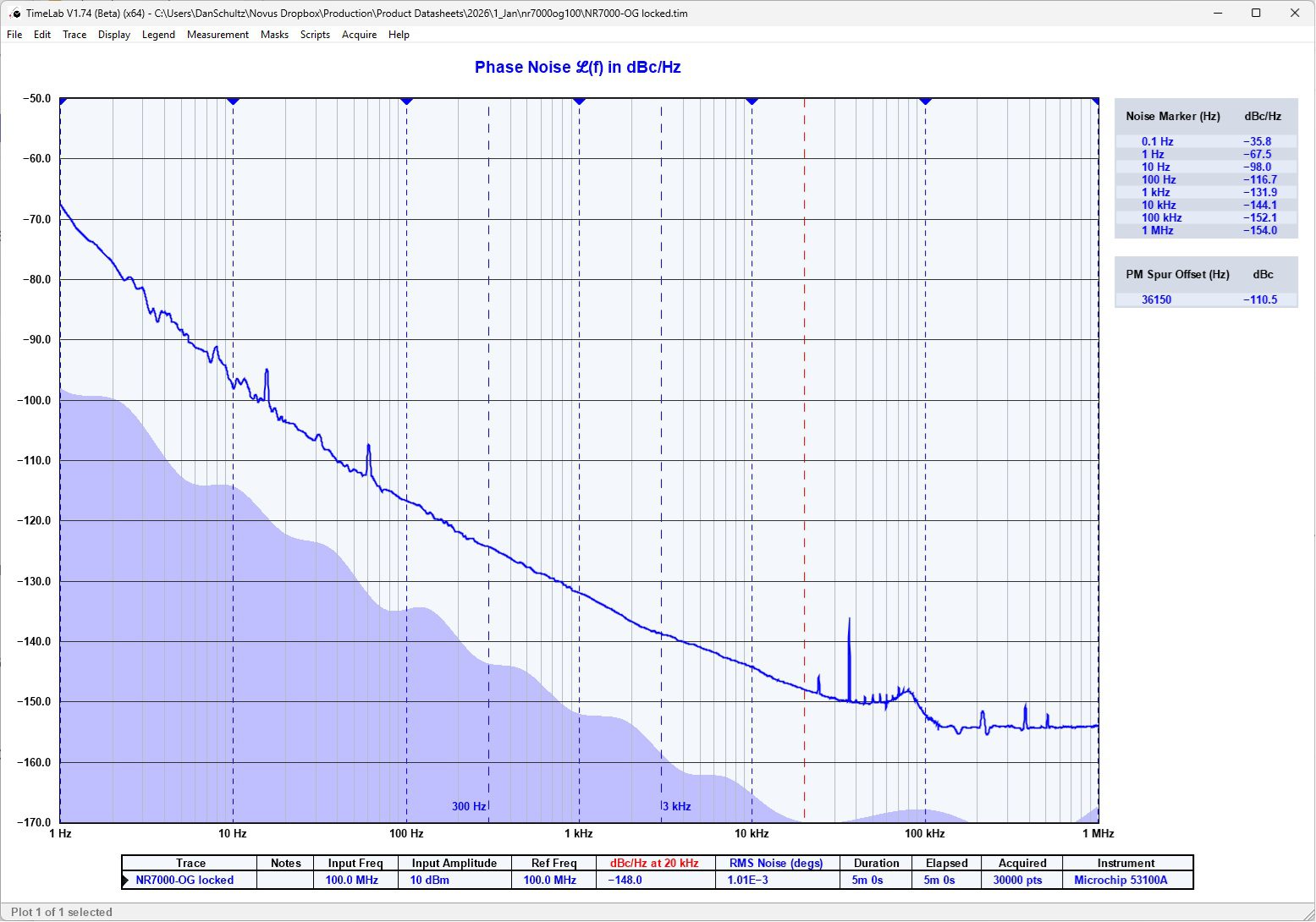

  • Low phase noise OCXO with an unlocked stability of <5ppb/day (lower phase noise options available)
  • The base unit operates from 5Vdc.
  • NMEA output at full RS232 levels- logic LVCMOS available
  • Features auto calibration that stores the best known GPS crystal calibration coefficients in non-volatile memory and are applied to the OCXO during a GPS loss condition. Long-term drift is effectively eliminated
  • 50 MHz available
  • PPS source and the unit may also be locked to an external PPS source.

Brand : Novus          SKU :NR7000-OG-100

Additional information

Data Sheet


User Manual


Design Considerations
