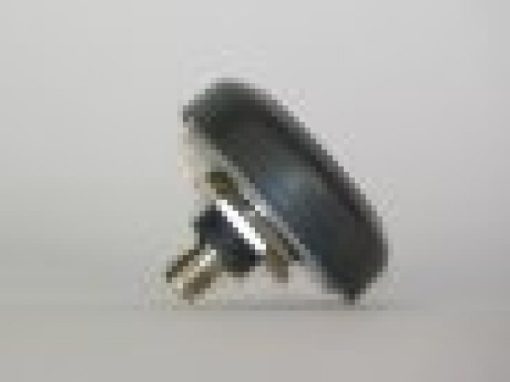

GNSS GPS Pole Mount Active Antenna NA103B

Brand : Novus          SKU : NCB03B

Upgrade your GNSS setup with the NA103B Mechanical Mount Antenna, designed for superior signal reception across GPS L1, GLONASS G1, Galileo E1, and Beidou B1 frequency bands. With a high 40 dB LNA gain and industry-leading out-of-band rejection, this precision-tuned antenna ensures accurate and reliable performance, even in demanding environments.

Key Features

• Broad Compatibility: Supports GPS, GLONASS, Galileo, and Beidou systems.

• High Gain: 40 dB typical amplifier gain for enhanced signal strength.

• Low Noise: Noise figure <2.0 dB ensures clean signal processing.

• Durable Design: Housed in rugged GE Lexan EXL9330, fully sealed and IP67 waterproof.

• Compact & Lightweight: Only 2.3" in diameter, weighs just 0.1 lbs.

• Mounting Flexibility: Designed for ¾” through-hole or bracket mounting.

• Reliable in Harsh Conditions: Operates from -40°C to +85°C, shock-rated to 50G.

Technical Specifications

• Frequency Range: 1559 – 1610 MHz

• Antenna Gain: 2 dBic @ 90°

• Polarization: Right Hand Circular (RHCP)

• Power Supply: 2.8V – 5.5V DC, <25mA typical consumption

• VSWR: 2.0 Max

• Impedance: 50Ω

• Out-of-Band Rejection: >60 dBc @ f₀ ± 50 MHz

• Connector Type: TNC Female

Environmental Ratings

• Waterproof Rating: IP67

• Shock Resistance: 50G vertical, 30G off-axis

• Vibration Rating: 3G, 3-axis sweep

• Mounting Surface Tolerance: Max 6.5mm thickness, flat and clean for IP67 compliance

Applications

Perfect for vehicle tracking, asset monitoring, geospatial surveying, and fixed GNSS installations requiring precision and reliability in compact form.
