NS8001-NTP Stratum 1 Time Server with 10 MHz, PPS, and IRIG

Dual-channel GNSS-locked NTP time server and frequency reference with 3 user-selectable outputs of 10 MHz, PPS, and IRIG. NMEA data is available over the serial connection.

Protocols
NTP, USB
GNSS
BeiDou, GLONASS, GNSS +2
Oscillator
MEMs
Output Signals
10 MHz, IRIG, NMEA +1
Call (816) 836-7446

Key Features & Specifications

  • Dual-channel GNSS-locked NTP time server and frequency reference with 3 user-selectable outputs of 10 MHz, PPS, and IRIG. NMEA data is available over the serial connection.

NS8001-NTP

Time Server with Dual-Channel GNSS-Locked 10 MHz, PPS, IRIG Reference

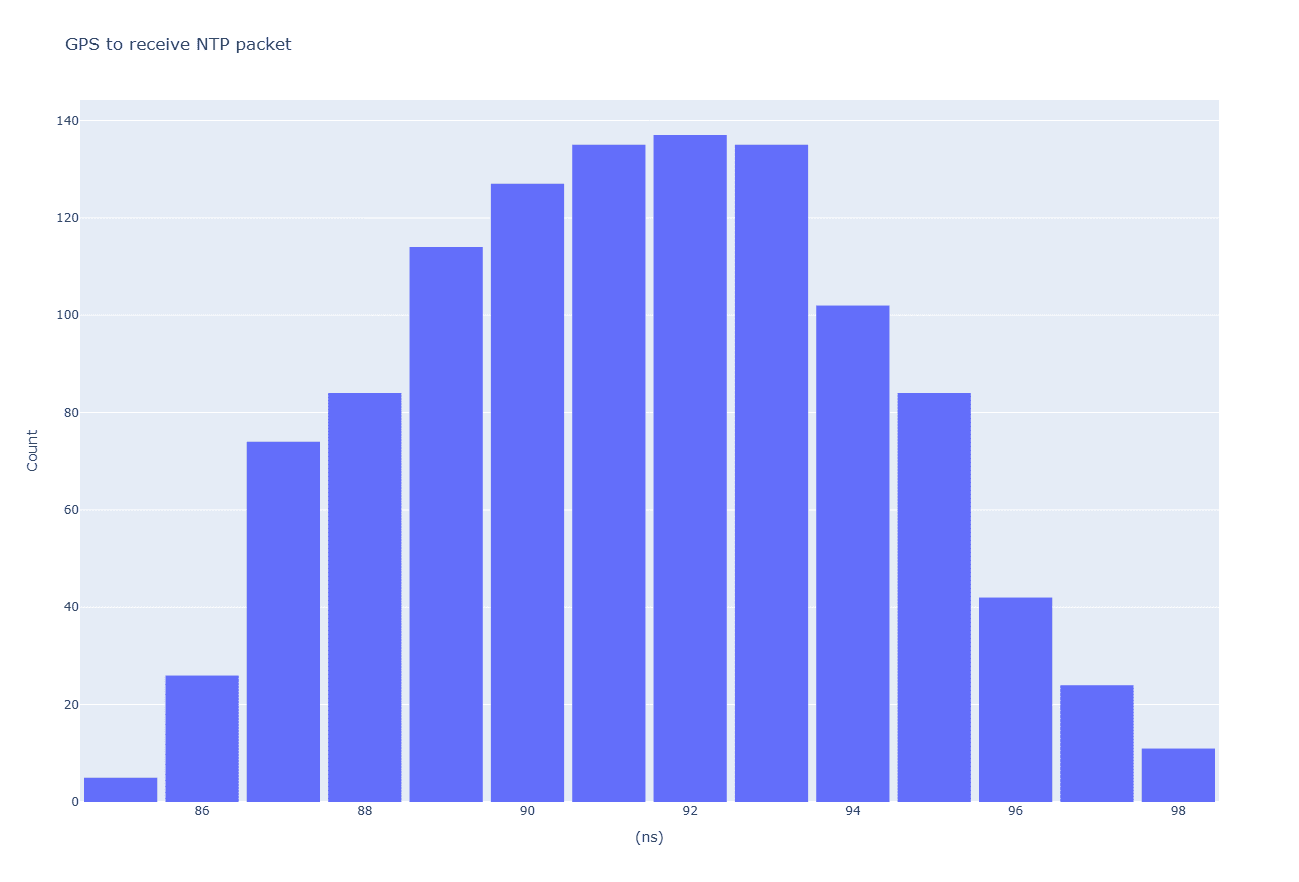

A low-cost high performance time server and timing reference in a compact chassis that can be shelf or rack mounted (rack mount kit available). The three output ports are independently user-selectable to 10 MHz, PPS, and IRIG. NTP Timing that is accurate in the tens of microseconds. PPS leading edge can be locked to the 10 MHz signal in 5 ns steps. This is especially important when used in SDR applications.

  • NTP
  • Stratum 1
  • +-150 ns accuracy
  • 100,000 transactions/second
  • PPS accuracy 5 ns @ 1 sigma
  • benchtop or rackmount with touch screen display
  • three channels user programmable to output 10 MHz, PPS or IRIG-B
  • dual independent GNSS receivers with PPS and 10 MHz OCXO frequency reference
  • auto-calibration preserves GNSS-derived coefficients for OCXO holdover stability
  • OCXO holdover stability: 5 ppb/day, 50 ppb/year; locked accuracy <1E-11
  • low phase noise: −145 dBc/Hz @ 1 kHz offset
  • front-panel LCD with status LEDs for channel, antenna, oven, and system alerts
  • ethernet connectivity with NTP/PTP
  • outputs are transient and fault protected; low-jitter PPS with PL-option
  • Supports GPS, GLONASS, Galileo, and BeiDou constellations for faster lock and reliability
  • AC/DC power capability; rackmount chassis;

The Novus NS8001-NTP delivers precise time and frequency synchronization for laboratories, telecom systems, power utilities, and secure networks.  Front-panel status indicators, this NTP time server ensures continuous operation and simplified system diagnostics for demanding applications.

FAQ

  1. What happens if GNSS lock is lost?
    Auto-calibration applies stored compensation coefficients, maintaining OCXO stability (5 ppb/day typical) until lock is restored.
  2. Which satellite constellations are supported?
    The system tracks GPS, GLONASS, SBAS, and QZSS to minimize lock time and enhance reliability.

Datasheets & Manuals

NS8001-NTP-DS-rev3.pdf

PDF · document

View
