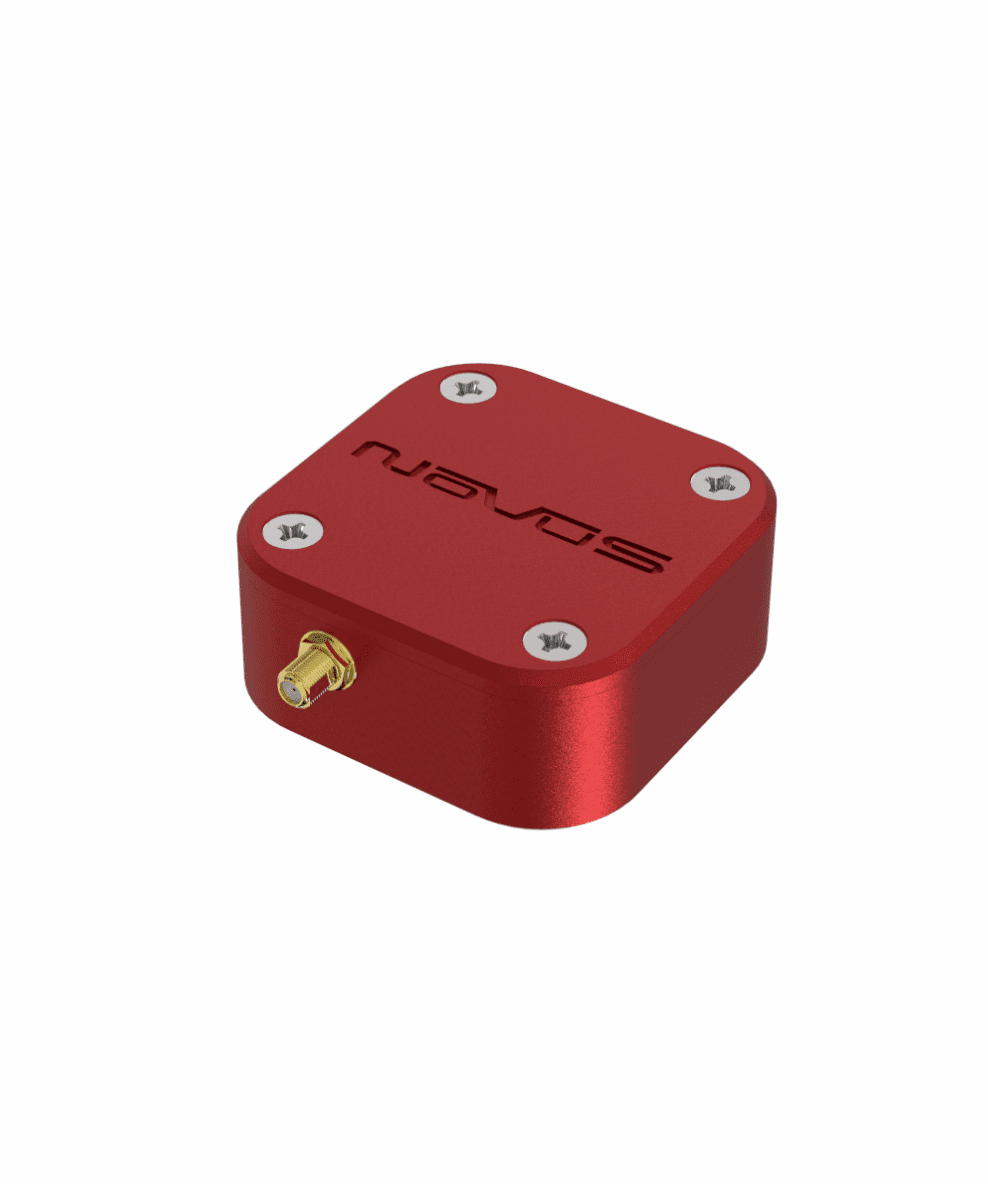

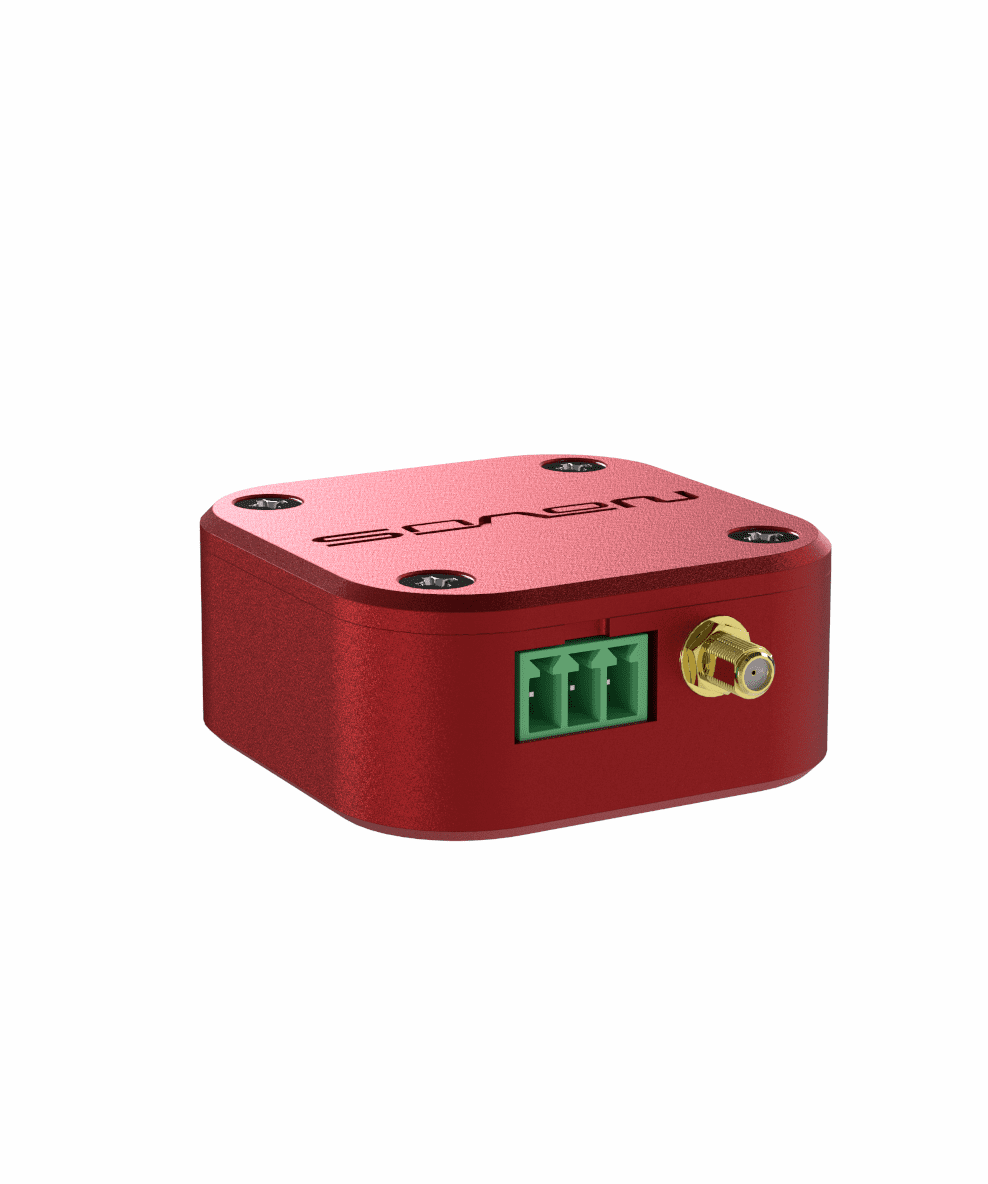

picoPOD 10 MHz Frequency Reference with Synthesized PPS

• High performance 10 MHz frequency reference with ±50 ppb/year stability
• Synthesized 1 PPS with programmable pulse width for precise timing applications
• Factory programmable secondary channel supporting 10, 50, and 100 MHz frequencies
• Compact chassis design for easy integration in space-constrained environments
• 0.5 Vrms 10 MHz output with harmonics well below -30dBc for clean signal generation
• Single 5 Vdc power source operation with low power consumption
• All inputs and outputs are fault and transient protected for enhanced reliability
• Optional locking to external PPS for synchronization with external time references
• Unlocked stability of less than 5ppb/day for consistent performance

The pico Pod Frequency Reference is engineered for applications requiring exceptional frequency stability and precision timing. This compact yet powerful device serves as an ideal solution for telecommunications infrastructure, test and measurement equipment, scientific instrumentation, and synchronization systems. The low phase noise OCXO ensures reliable performance in demanding environments, while the synthesized PPS output enables precise time synchronization across multiple systems. With its modular design and DC power operation, the NR7000-O can be easily integrated into existing systems or deployed in field applications where space and power are at a premium.

Frequently Asked Questions

1. What is the stability of the OCXO in the pico Pod NR7000-O?
   The pico Pod NR7000-O offers exceptional stability with ±50 ppb/year aging rate and unlocked stability of less than 5ppb/day, ensuring consistent frequency reference performance over time.
2. Can the pico Pod NR7000-O be synchronized with external time references?
   Yes, the NR7000-O includes optional locking capability to an external PPS source, allowing it to synchronize with external time references for enhanced timing accuracy in complex systems.
3. What power requirements does the pico Pod NR7000-O have?
   The NR7000-O operates from a single 5 Vdc power source, making it suitable for integration into various systems and portable applications where DC power is available.
4. What output frequencies are available with the pico Pod NR7000-O?
   The base unit provides a 10 MHz reference output, with factory programmable secondary channels available at 10, 50, and 100 MHz frequencies to accommodate different application requirements.

Brand : Novus          SKU :NR7000-O
