Four Channel 1PPS source NR3623-PPS


Four Channel PPS Source with NMEA

Three < 1 ns Skewing Channels and a Fourth Reference Channel


Four transient and fault protected PPS outputs with < 1 ns of channel skewing. Each channel is monitored and status LED’s displayed on the front panel. Built-in self-test drives a signal that can be tied into an alarm panel. High performance GNSS receiver offers 26 channels for rapid acquisition. Programmable pulse width and cable compensation,

  • Four fault and transient protected outputs.
  • Operates from an AC power adapter or from a DC source from  -60 to +60 Vdc (in three ranges).

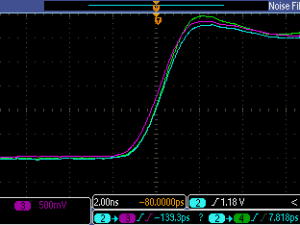

  • Channel skewing < 1 ns ( Skewing is typically less than 200 ps on the three BNC channels)
  • Drives 3.3 Vdc or 5 Vdc LVCMOS into 50 Ohms on the three BNC channels, 5 Vdc CMOS into 1000 Ohms on SMA Channel.
  • 1PPS accuracy < 30 ns  rms.
  • RS232 NMEA data.

Need more channels- see the 10 channel distribution amplifier ND2310D-PPS

Brand : Novus          SKU : NR3623-PPS






Additional information

Data Sheet


Design Considerations
