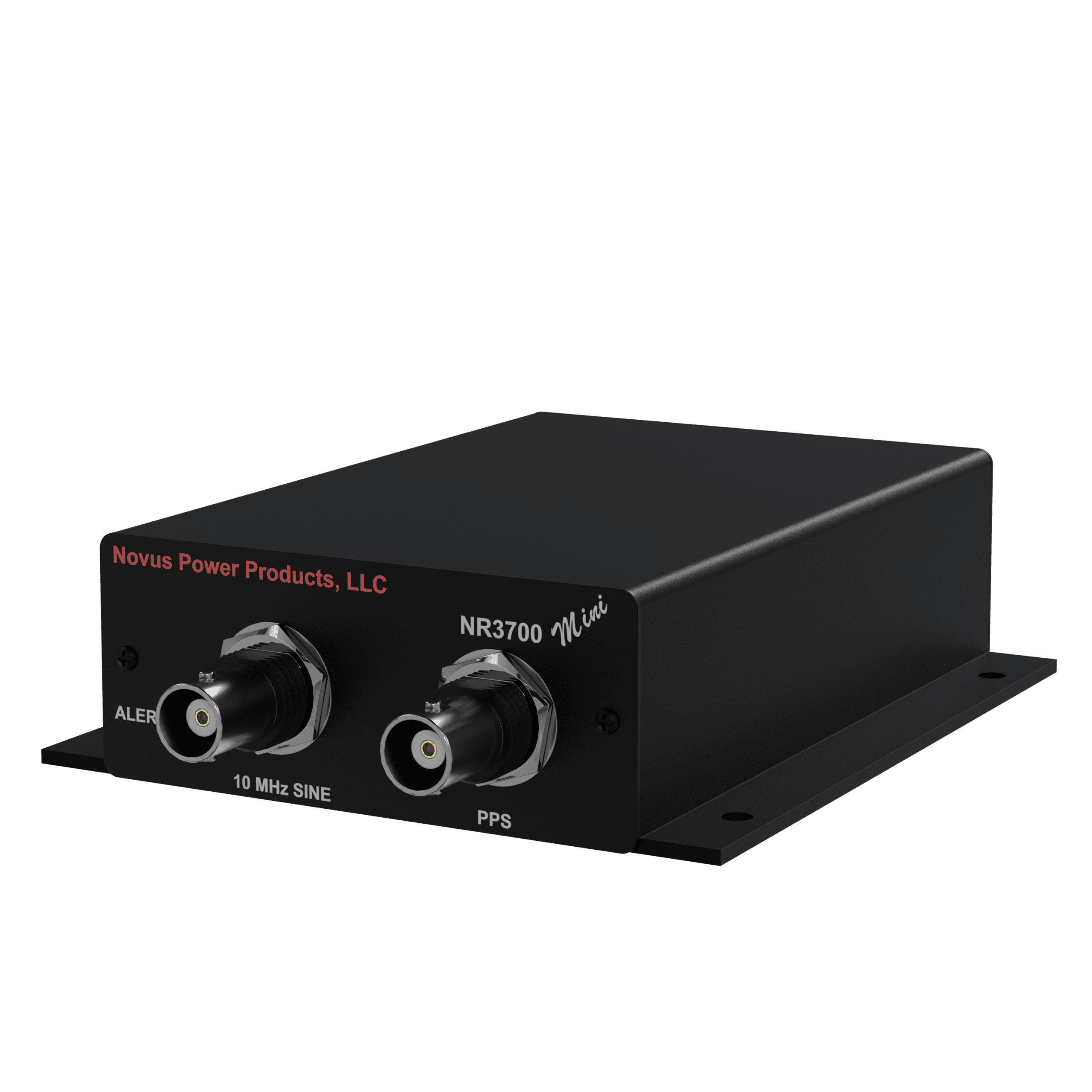

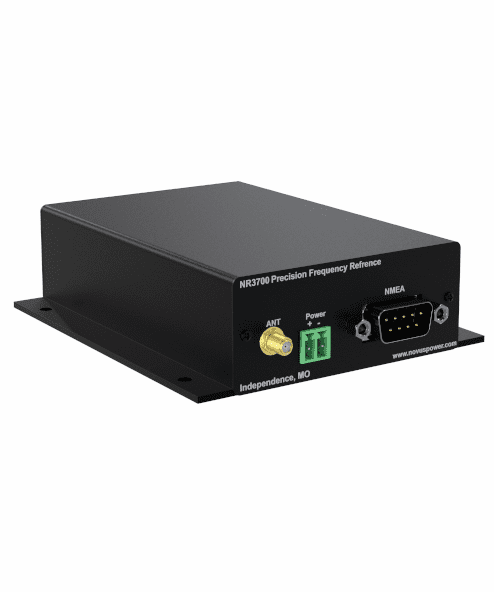

Single Channel Low Cost 10 MHz OCXO Reference NR3700-O

Single Channel 10 to 100 MHz Frequency Reference, OCXO Based

10 to 100 MHz Reference operates from -60 to +60 Vdc in Three Ranges or an AC adapter

NR3700-O

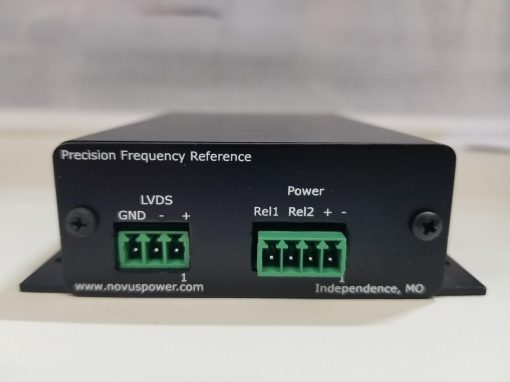

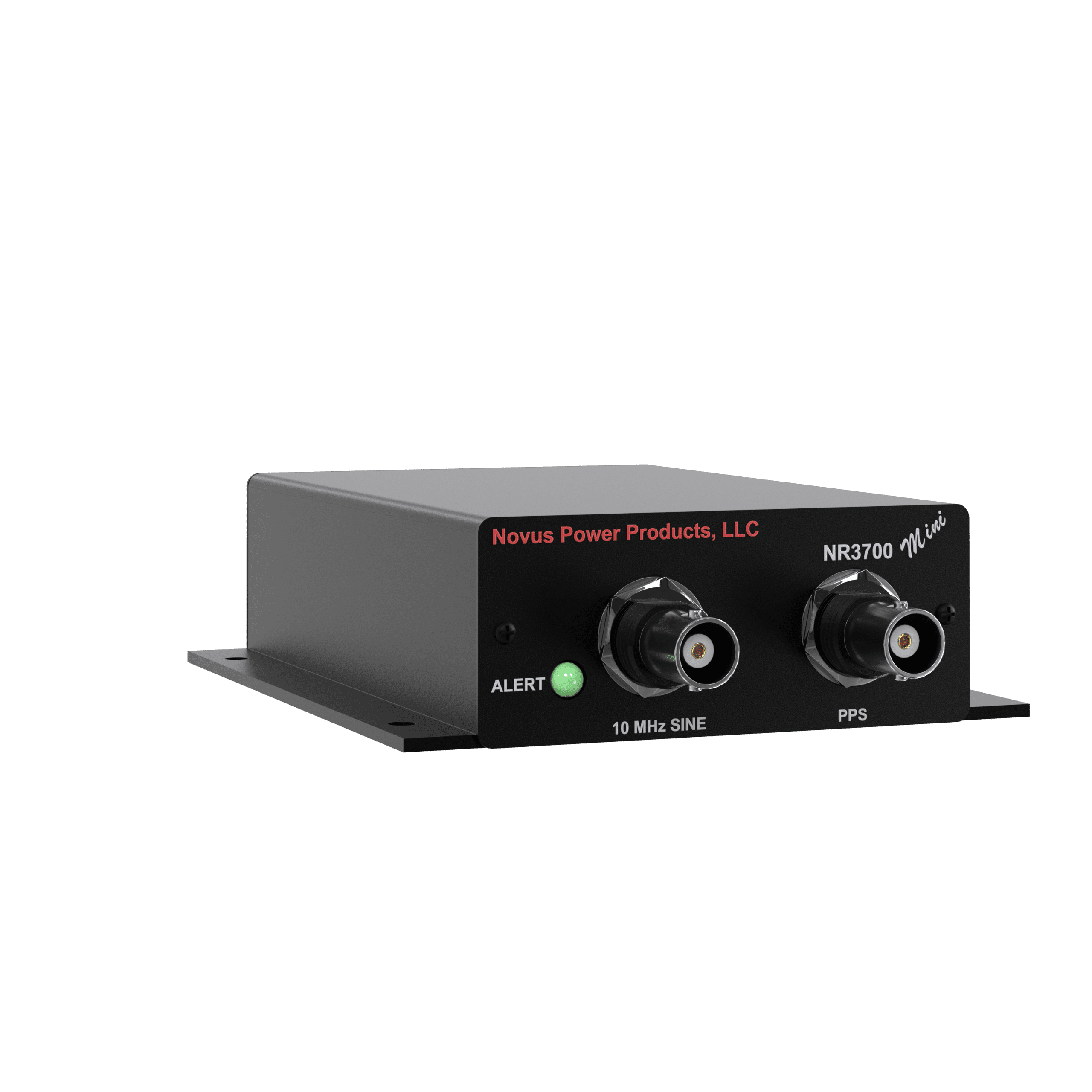

The NR3700 10MHz frequency reference uses a low noise SC cut OCXO as the master timing source. The unit is offered at up to 100 MHz. The OCXO is biased with a band-gap reference to provide excellent temperature and and aging stability.  LED indicator provides self-test status. There is also a floating solid state relay that can be tied to an alarm panel self test status.

The NR3700 contains an optional factory configurable frequency synthesizer that operates from sub-1 Hz to 10 MHz.  The output is available on the SMA as a CMOS signal at 5 Vdc or 3.3 Vdc  CMOS capable of driving a 50 ohm load. An excellent simulated 1PPS source. The synthesized signal is also available as a LVDS or RS422.

The unit also has a LVDS, RS422 option.

• Low phase noise OCXO/ MEMS
• Hold-Over stability of 5 ppb/day, 50ppb/year
• Operates from DC Power in three ranges +- (10 to 18, 18 to 36, 36 to 65) VDC or an AC Adapter

• Indicators and signals provide self-test status
•  CMOS
• Frequency synthesizer from sub-1 Hz to 10 MHz (default is PPS)
• LVDS connected to `10 MHz square or PPS. default is 10 MHz

Brand : Novus          SKU :NR3700-O
