10 Channel Low Noise Rubidium 10 MHz Frequency Reference with Display and Networking – NR2310D-RO

10 Channel, High Stability, Low Noise 10 MHz Frequency Reference

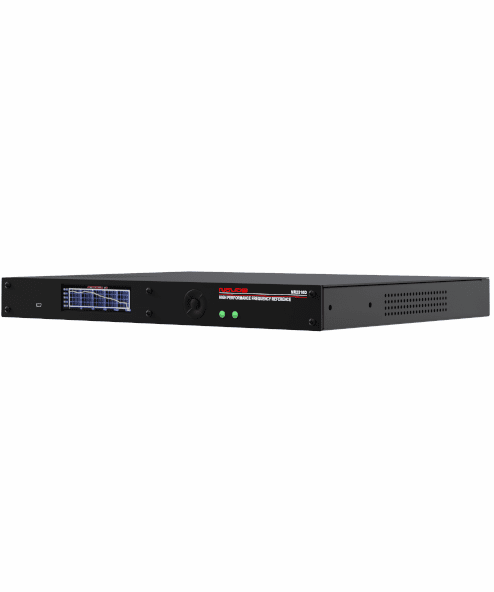

NR2310D-RO

For many applications, the phase noise of a Rubidium reference is not acceptable. The NR2310D-RO incorporates a low noise OCXO that is disciplined to the Rubidium reference. Ten channels typically meets the needs of most systems eliminating the need for a distribution amplifier and minimizing noise degradation. All channels are continuously monitored and displayed locally and accessible via RS232 or Ethernet.

• 10 transient and fault protected 10MHz channels with local indicators on the front and rear panel.
• Option-operates from AC or DC power sources..
• Monitor and set alert limits on each output.
• aging less than +-5E-11/month
• temperature stability <5E-10 0 to 50C
• Warm-up time , 12 min
• High stability simulated 1PPS option available , < 100 ps -P-P (see curve)
• Available with BNC or SMA output connectors
• Also available with 10 MHz square CMOS outputs.

10Hz     -125
100Hz   -140
1K         -155
10K       -155

Calibration application under Design Considerations

Brand : Novus          SKU :NR2310D-RO
