Dual Channel Low Cost Rubidium 10 MHz Frequency Reference NR2110D-R


Dual Channel, Low Cost Rubidium 10MHz Frequency Reference – NR2110D-R


High Stability Rubidium 10MHz Frequency Reference

Low Cost dual channel 10 MHz Rubidium frequency reference.  Channels are continuously monitored and displayed locally and accessible via RS232 or Ethernet.

  • Two transient and fault protected channels with local indicators on the front and rear panel.
  • Option-operates from AC or DC power sources..
  • Monitor and set alert limits on each output.
  • aging less than 5E-11/month (unlocked)
  • temperature stability <5E-10 0 to 50C (unlocked)
  • Warm-up time , 12 min
  •  BNC output connectors
  • Networking with optional SNMP
  • Available with either SMA or BNC output connectors

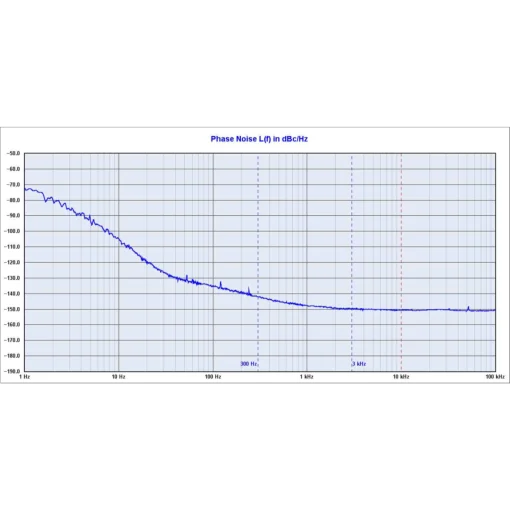

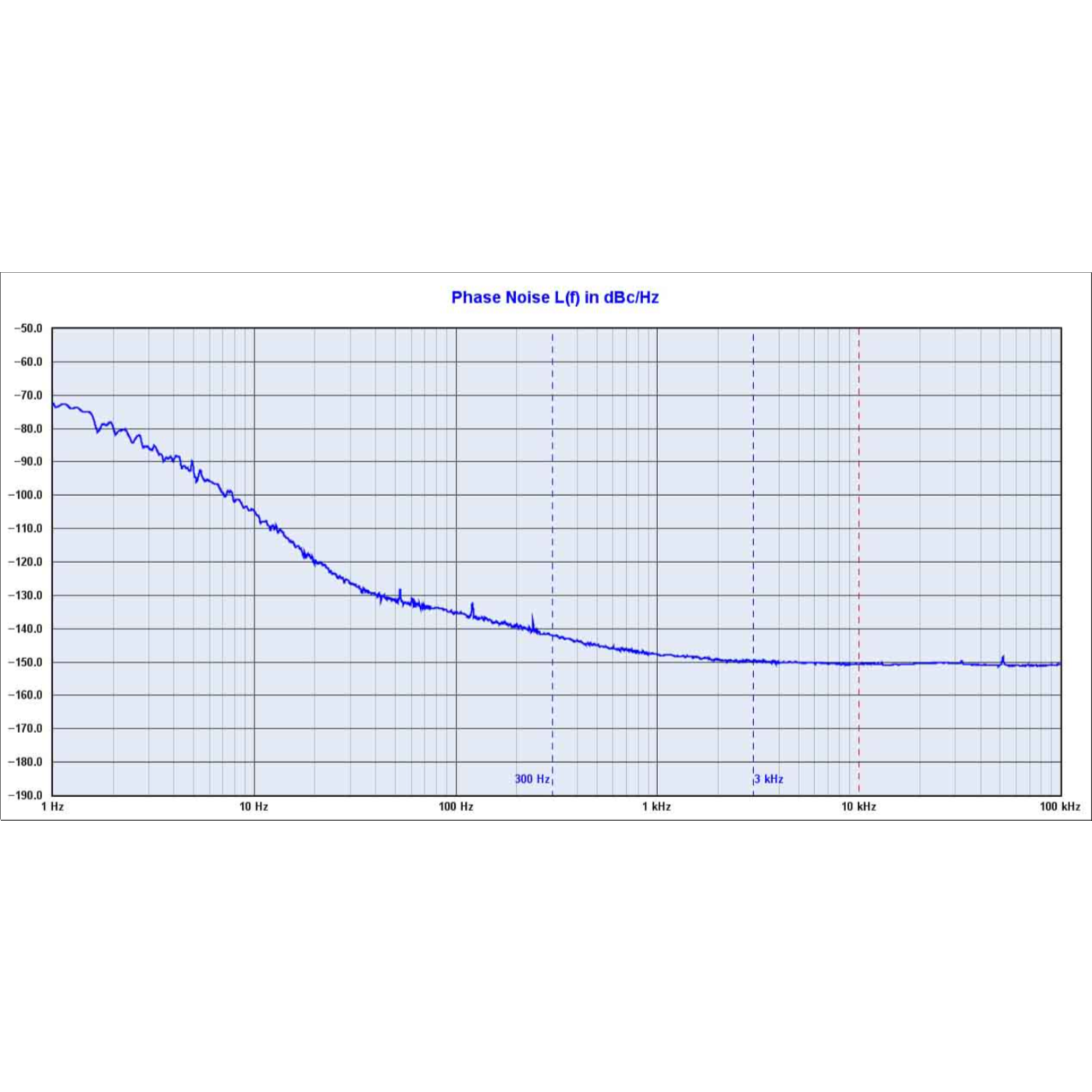

10Hz     -85
100Hz   -115
1K         -135
10K       -140

Brand : Novus          SKU :NR2110D-R

Additional information

Data Sheet
